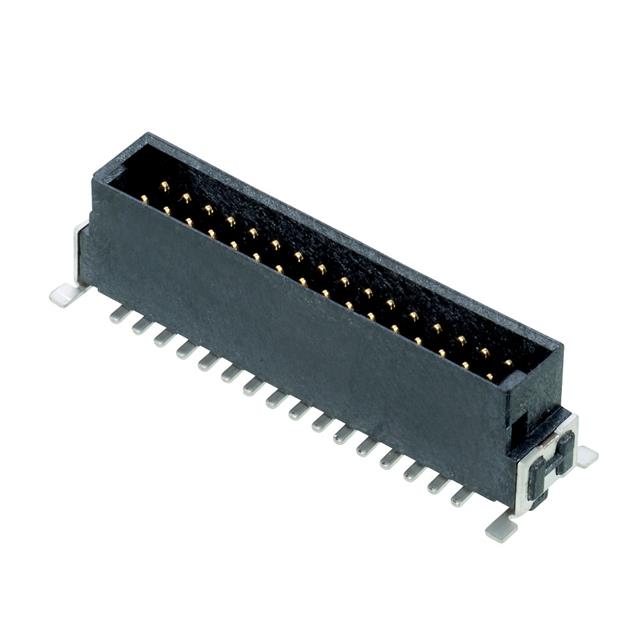

M55-7003242R

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mounting Angle :

Vertical

Stack Height :

6.75 mm

Voltage Rating :

100 VAC

Series :

Archer Kontrol

Ingress Protection :

-

Number of Positions :

32 Position

Contact Length - Post :

-

Mounting Type :

Surface Mount

Contact Length - Mating :

0.157 (4.00mm)

Contact Type :

Male Pin

Contact Finish Thickness - Post :

100.0µin (2.54µm)

Current Rating (Amps) :

1.2A

Fastening Type :

Latch Lock

Pitch :

1.27 mm

Mounting Style :

SMD/SMT

Termination Style :

Solder

Row Spacing - Mating :

0.050 (1.27mm)

Applications :

Automotive, General Purpose, Industrial

Mated Stacking Heights :

8mm, 10.8mm, 15.4mm

Product Status :

Active

Product :

Connectors

Connector Type :

Header

Contact Finish Thickness - Mating :

1.00μin (0.025μm)

Packaging :

Cut Tape

Insulation Height :

0.266 (6.75mm)

Pitch - Mating :

0.050 (1.27mm)

Contact Shape :

RECTANGULAR

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Material Flammability Rating :

UL94 V-0

Insulation Material :

Liquid Crystal Polymer (LCP)

Overall Contact Length :

-

Features :

Board Guide, Pick and Place, Solder Retention

Contact Finish - Post :

Tin

Style :

Board to Board

Termination :

Solder

Number of Positions Loaded :

All

Flammability Rating :

UL 94 V-0

Number of Rows :

2 Row

Minimum Operating Temperature :

- 55 C

Housing Material :

Liquid Crystal Polymer (LCP)

RoHS :

Details

Contact Plating :

Gold

Current Rating :

1.2 A

Insulation Color :

Black

Maximum Operating Temperature :

+ 125 C

Shrouding :

Shrouded - 4 Wall

Operating Temperature :

-55°C ~ 125°C

Contact Finish - Mating :

Gold

Contact Material :

Phosphor Bronze

Reach Compliance Code :

Compliant

Insulation Resistance :

10 GOhms
