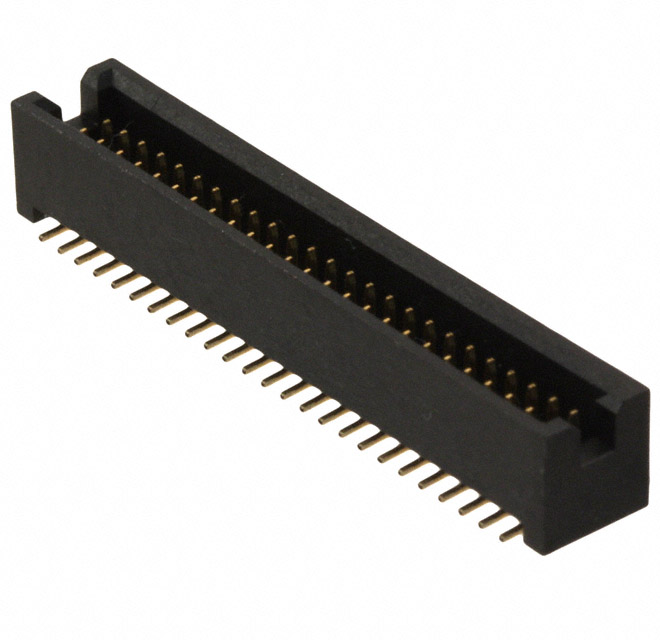

M50-4902545

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Termination :

Solder

PCB Contact Pattern :

RECTANGULAR

Mating Contact Pitch :

0.05 inch

Style :

Board to Board

Connector Type :

Header

Insulation Resistance :

1GOhm

Length :

34.95mm

Contact Material :

COPPER ALLOY

Published :

2009

Current Rating :

1A

Radiation Hardening :

No

Gender :

Male

RoHS Status :

ROHS3 Compliant

Voltage - Rated :

300V

Series :

Archer M50

Max Voltage Rating (AC) :

300V

Mounting Type :

Surface Mount

Depth :

5.65mm

Insulation Material :

Liquid Crystal Polymer (LCP)

Lead Pitch :

1.27mm

Contact Resistance :

20mOhm

Reliability :

COMMERCIAL

Number of Positions :

50

DIN Conformance :

No

Current Rating (Amps) :

1A per Contact

Pbfree Code :

yes

Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

Contact Type :

Male Pin

Mount :

Surface Mount

REACH SVHC :

No SVHC

Max Current Rating :

1A

Contact Finish - Mating :

Gold

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e4

Fastening Type :

Push-Pull

Total Number of Contacts :

50

Number Of PCB Rows :

2

Packaging :

Tube

Number of Positions Loaded :

All

IEC Conformance :

No

MIL Conformance :

No

Housing Material :

Polymer

Factory Lead Time :

13 Weeks

Durability :

100 Cycles

Housing Color :

Black

Voltage - Rated AC :

150V

Option :

GENERAL PURPOSE

Number of Rows :

2

Operating Temperature :

-40°C~105°C

Row Spacing - Mating :

0.050 (1.27mm)

UL Flammability Code :

94V-0

Number of Conductors :

ONE

Orientation :

Straight

Contact Shape :

Square

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reference Standard :

UL

Pitch - Mating :

0.050 1.27mm

Insulation Height :

0.224 5.69mm

Additional Feature :

POLARIZED
