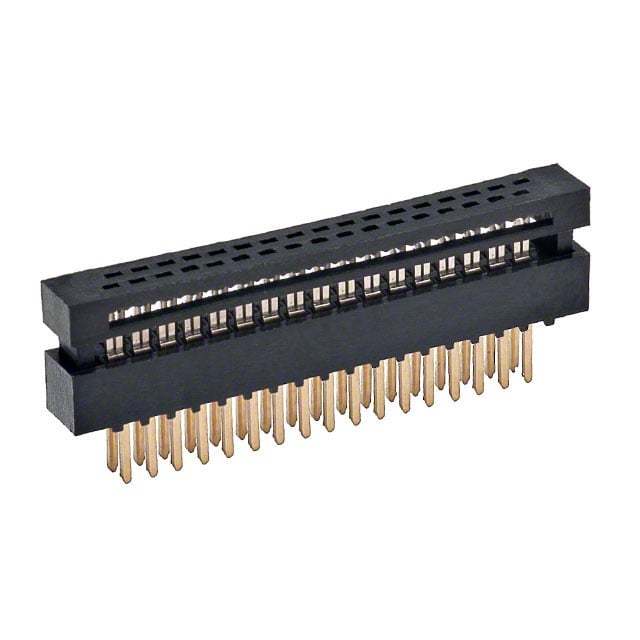

M50-3801742

Manufacturer :

Harwin

Product Category :

Board In, Direct Wire to Board

Wire Gauge :

30 AWG

RoHS Status :

ROHS3 Compliant

Length :

28.93mm

Wire/Cable Type :

Ribbon

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

12 Weeks

Reference Standard :

UL

REACH SVHC :

No SVHC

Reliability :

COMMERCIAL

Mount :

Free Hanging, Through Hole

Contact Gender :

Male

Row Spacing :

0.050 (1.27mm)

Rated Current (Signal) :

0.5A

ECCN Code :

EAR99

Board-Side Pitch :

0.050 1.27mm

Published :

2012

Series :

Archer M50

Dielectric Withstanding Voltage :

1400VAC V

Cable Termination :

IDC

Pbfree Code :

yes

Height :

4.7mm

Max Operating Temperature :

105°C

Housing Material :

PBT

Contact Style :

IDC

Number Of PCB Rows :

2

Number of Rows :

2

Number of Positions :

34

Mounting Type :

Through Hole

Contact Material :

Bronze

JESD-609 Code :

e3

Connector Type :

Ribbon Cable, DIP Header

Insulation Resistance :

1GOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

34

Contact Finish :

Gold

Min Operating Temperature :

-40°C

Plating Thickness :

1μin

Packaging :

Tray

Contact Pattern :

RECTANGULAR

Cable Pitch :

0.025 0.64mm

Current Rating :

500mA

Number of Positions Loaded :

All

Number of Conductors :

ONE

Feature :

Feed Through

Body Breadth :

0.118 inch

Wire/Cable Gauge :

30 AWG

Pitch :

1.27mm

HTS Code :

8536.69.40.51

Termination :

Through Hole
