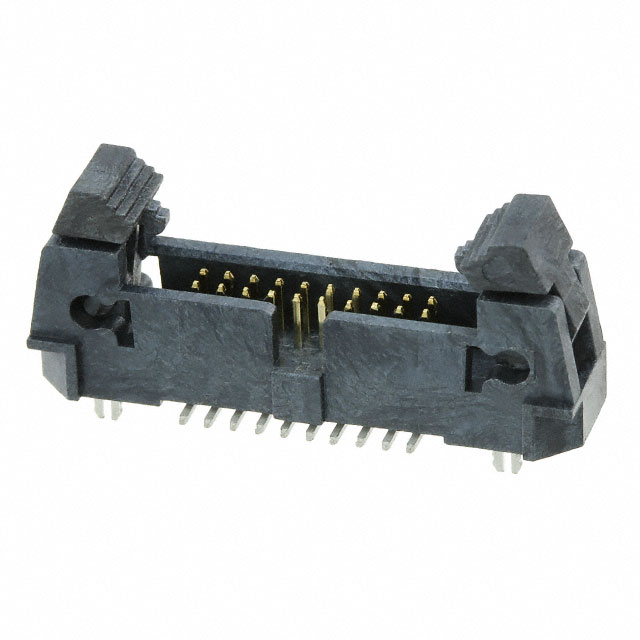

M50-3651042R

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Packaging :

Tape and Reel (TR)

MIL Conformance :

No

Contact Finish Thickness - Post :

100.0μin 2.54μm

Insulation :

Insulated

Height :

11.3mm

Number of Positions :

20

Published :

2012

Connector Type :

Header

Contact Finish - Mating :

Gold

Stack Height (Mating) :

11.85mm

DIN Conformance :

No

Series :

Archer M50

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Mount :

Surface Mount

Operating Temperature :

-55°C~125°C

Contact Finish - Post :

Tin

Insulation Resistance :

5GOhm

JESD-609 Code :

e3

Insulation Color :

Black

Lead Length :

4.09mm

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Pitch - Mating :

0.050 1.27mm

Total Number of Contacts :

20

Factory Lead Time :

12 Weeks

Contact Type :

Male Pin

Row Spacing - Mating :

0.050 (1.27mm)

Contact Finish Thickness - Mating :

Flash

Contact Length - Mating :

0.120 3.05mm

Termination :

Solder

Fastening Type :

Latch Lock/Eject Hooks

Length :

14.48mm

RoHS Status :

ROHS3 Compliant

Insulation Height :

0.325 8.25mm

Shrouding :

Shrouded - 4 Wall

Option :

GENERAL PURPOSE

Material Flammability Rating :

UL94 V-0

Current Rating (Amps) :

1.75A per Contact

UL Flammability Code :

94V-0

Contact Gender :

Male

Current Rating :

1.75A

Contact Material :

Brass

Style :

Board to Board or Cable

Housing Material :

Polymer

Feature :

Board Lock, Keying Slot, Pick and Place

IEC Conformance :

No

Mixed Contacts :

No

Number of Rows :

2

Mating Post Length :

3.05mm

Contact Shape :

Square

Mounting Type :

Surface Mount

REACH SVHC :

No SVHC

Pbfree Code :

yes

Filter Feature :

No
