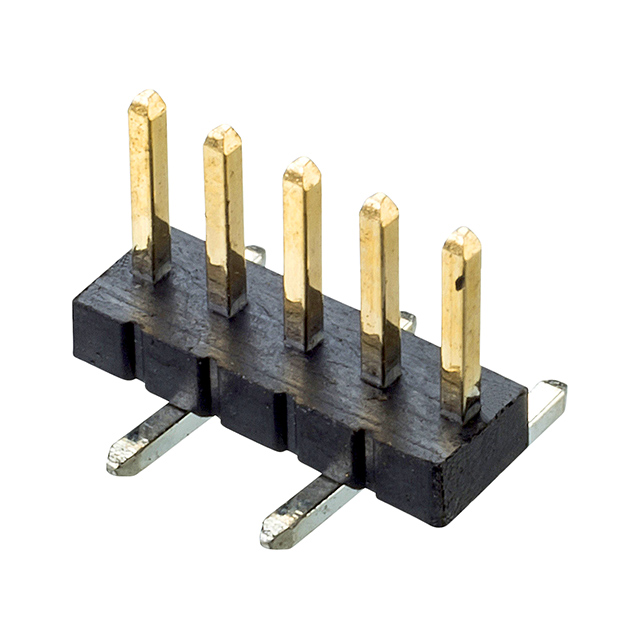

M50-3630542
Or copy the link below:
- Mfr.Part #
- M50-3630542
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 5POS 1.27MM
- Stock
- 11,264
- In Stock ：
- 11,264
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Packaging :
- Tape and Reel (TR)
- Connector Type :
- Header
- Contact Finish - Mating :
- Gold
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Material :
- Brass
- Material Flammability Rating :
- UL94 V-0
- Insulation Material :
- Polyamide (PA9T), Nylon 9T
- Termination :
- Solder
- Contact Type :
- Male Pin
- Factory Lead Time :
- 13 Weeks
- Feature :
- Pick and Place
- Number of Positions Loaded :
- All
- Published :
- 2017
- Style :
- Board to Board
- Number of Positions :
- 5
- Contact Length - Mating :
- 0.118 3.00mm
- Series :
- Archer M50
- Shrouding :
- Unshrouded
- Contact Shape :
- Square
- Pitch - Mating :
- 0.050 1.27mm
- Stack Height (Mating) :
- 3.9mm 5.3mm 6.08mm 6.18mm 7mm
- Number of Rows :
- 1
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.039 1.00mm
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Surface Mount
- Fastening Type :
- Push-Pull
- Current Rating (Amps) :
- 1A per Contact
- Insulation Color :
- Black
- Operating Temperature :
- -40°C~105°C
- Datasheets
- M50-3630542
Archer M50 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount Gold Polyamide (PA9T), Nylon 9T 5-Position Board to Board 0.039 1.00mm Height
M50-3630542R Overview
The product comes in a package of Header.Surface Mount is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the Archer M50 Series.It is more powerful in many ways due to its Pick and Place feature.It operates at an operating temperature of -40°C~105°C.
M50-3630542R Features
Archer M50 series
M50-3630542R Applications
There are a lot of Harwin Inc.
M50-3630542R Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
