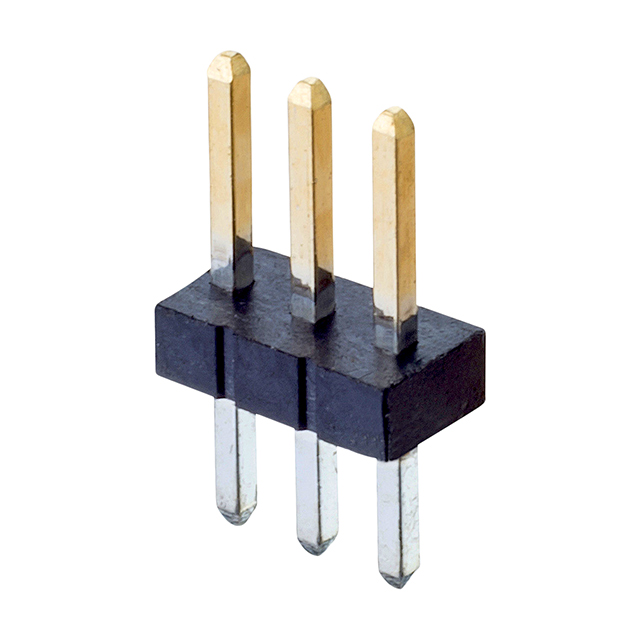

M50-3530342
Or copy the link below:
- Mfr.Part #
- M50-3530342
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 1.27MM
- Stock
- 11,559
- In Stock ：
- 11,559
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Contact Length - Mating :
- 0.118 3.00mm
- Style :
- Board to Board
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- IEC Conformance :
- No
- Connector Type :
- Header
- Option :
- GENERAL PURPOSE
- UL Flammability Code :
- 94V-0
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish - Mating :
- Gold
- MIL Conformance :
- No
- Insulation Color :
- Black
- DIN Conformance :
- No
- Mounting Type :
- Through Hole
- Insulation Height :
- 0.039 1.00mm
- Number of Positions :
- 3
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.091 2.30mm
- Current Rating (Amps) :
- 1A per Contact
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- Filter Feature :
- No
- Number of Rows :
- 1
- Mixed Contacts :
- No
- Pbfree Code :
- yes
- Pitch - Mating :
- 0.050 1.27mm
- Stack Height (Mating) :
- 3.10mm 4.60mm 5.40mm
- Contact Material :
- Brass
- Fastening Type :
- Push-Pull
- Series :
- Archer M50
- Shrouding :
- Unshrouded
- Overall Contact Length :
- 0.248 6.30mm
- ECCN Code :
- EAR99
- Termination :
- Solder
- Operating Temperature :
- -40°C~105°C
- Factory Lead Time :
- 13 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Material :
- Polyamide (PA9T), Nylon 9T
- Datasheets
- M50-3530342
M50-3530342 Documents
Archer M50 Series 1-Row Header Solder Brass Bulk Through Hole Gold Polyamide (PA9T), Nylon 9T 3-Position Board to Board 0.039 1.00mm Height
M50-3530342 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number Archer M50 belongs to the Archer M50 Series.This device operates at a temperature of -40°C~105°C.
M50-3530342 Features
Archer M50 series
M50-3530342 Applications
There are a lot of Harwin Inc.
M50-3530342 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
