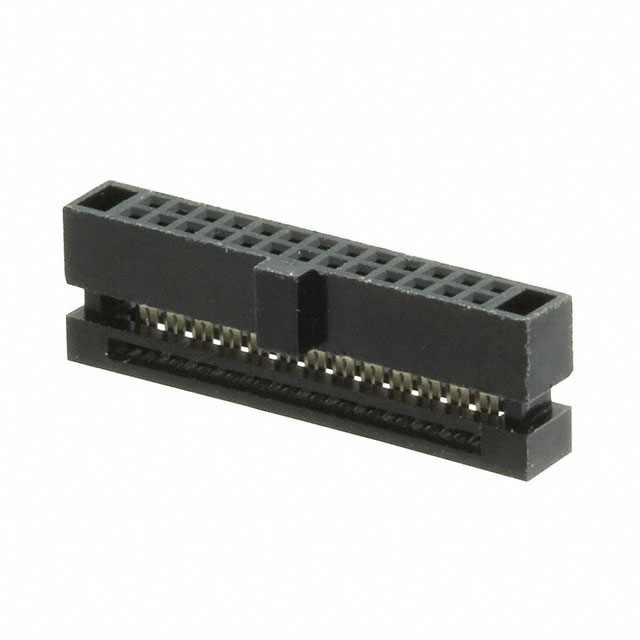

M50-3301342

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire/Cable Type :

Discrete

Pitch :

0.050 1.27mm

Fastening Type :

Latch Holder

Max Operating Temperature :

105°C

Body Breadth :

0.159 inch

ECCN Code :

EAR99

Termination Type :

IDC

Wire Type :

Ribbon Cable

Contact Material :

Bronze

Row Spacing :

0.050 (1.27mm)

Contact Finish :

Gold

REACH SVHC :

No SVHC

Number of Rows :

2

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

FEMALE

Reliability :

COMMERCIAL

Series :

Archer M50

Published :

2010

Rated Current (Signal) :

1A

Wire Gauge :

30 AWG

Mount :

Free Hanging

Body Length or Diameter :

0.815 inch

Current Rating :

1A

Mounting Type :

Free Hanging (In-Line)

RoHS Status :

ROHS3 Compliant

Number of Positions :

26

JESD-609 Code :

e3

Wire/Cable Gauge :

30 AWG

Housing Material :

PBT

Packaging :

Tube

Contact Resistance :

30mOhm

Min Operating Temperature :

-40°C

HTS Code :

8536.69.40.40

Weight :

500.992773mg

Contact Type :

Female Socket

Insertion Force-Max :

1.0008 N

Insulation Resistance :

1GOhm

Feature :

Feed Through

Total Number of Contacts :

26

Cable Termination :

IDC

Durability :

100 Cycles

Pbfree Code :

yes

Factory Lead Time :

12 Weeks

Connector Type :

Receptacle
