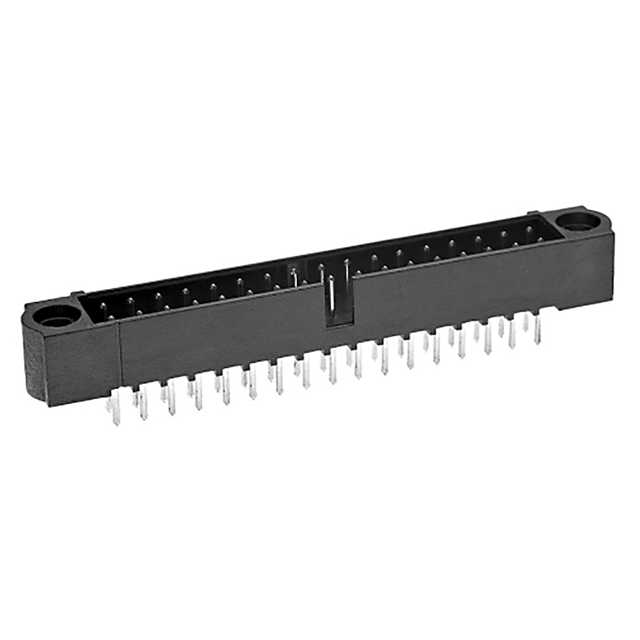

M225-5203446
Or copy the link below:
- Mfr.Part #
- M225-5203446
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 34POS 2MM
- Stock
- 36,179
- In Stock ：
- 36,179
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 2
- Feature :
- Mating Flange, Polarizing Key
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Pitch - Mating :
- 0.079 2.00mm
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Current Rating (Amps) :
- 3A
- Insulation Color :
- Black
- Insulation Height :
- 0.220 5.60mm
- RoHS Status :
- ROHS3 Compliant
- Number of Positions Loaded :
- All
- Contact Shape :
- Circular
- Contact Material :
- Phosphor Bronze
- Factory Lead Time :
- 11 Weeks
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Series :
- M225
- Contact Type :
- Male Pin
- Operating Temperature :
- -55°C~125°C
- Fastening Type :
- Push-In
- Packaging :
- Bulk
- Connector Type :
- PLUG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Post :
- 0.130 3.30mm
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Number of Positions :
- 34
- Datasheets
- M225-5203446
M225 Series 2-Row Plug Solder Phosphor Bronze Bulk Through Hole Tin Polyphenylene Sulfide (PPS), Glass Filled 34-Position Board to Cable/Wire 0.220 5.60mm Height
M225-5203446 Overview
It comes in Plug packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the M225 Series of products.Its Mating Flange, Polarizing Key feature renders it more powerful in many ways.The device runs in -55°C~125°C Operating Temperature.
M225-5203446 Features
M225 series
M225-5203446 Applications
There are a lot of Harwin Inc.
M225-5203446 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
