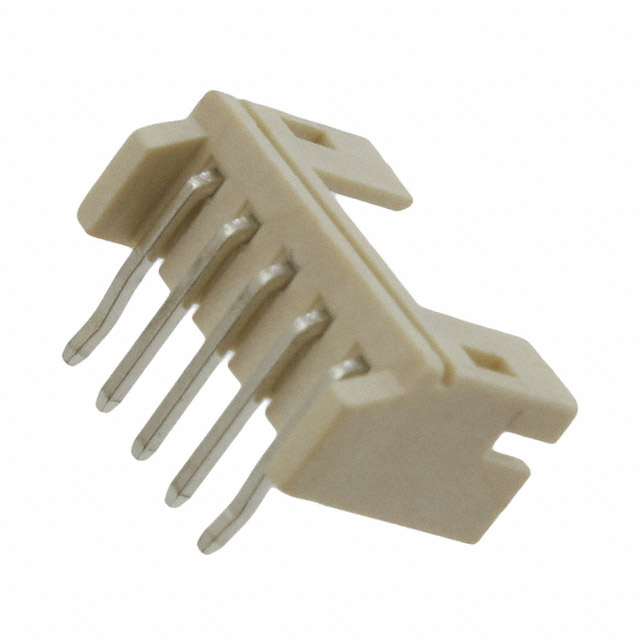

M22-2210546

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Additional Feature :

LATCHED, SHROUDED

ECCN Code :

EAR99

JESD-609 Code :

e3

Number of Conductors :

ONE

Insulation Color :

Natural

Contact Material :

Brass

Max Voltage Rating (AC) :

100V

Style :

Board to Cable/Wire

DIN Conformance :

No

RoHS Status :

ROHS3 Compliant

Contact Finish - Mating :

Tin

Mixed Contacts :

No

Factory Lead Time :

4 Weeks

Mounting Type :

Through Hole, Right Angle

PCB Contact Pattern :

RECTANGULAR

Number of Rows :

1

Radiation Hardening :

No

IEC Conformance :

No

Mating Contact Pitch :

0.079 inch

Fastening Type :

Detent Lock

Number of Positions :

5

Operating Temperature :

-25°C~85°C

Contact Length - Post :

0.134 3.40mm

Insulation Height :

0.195 4.95mm

Termination :

Kinked Pin, Solder

Number Of PCB Rows :

1

MIL Conformance :

No

Max Current Rating :

2A

Dielectric Withstanding Voltage :

800VAC V

Published :

2013

Orientation :

RIGHT ANGLE

Contact Shape :

Square

Housing Material :

Nylon

Contact Resistance :

30mOhm

Shrouding :

Shrouded - 4 Wall

Pitch - Mating :

0.079 2.00mm

Package / Case :

SIL

Contact Type :

Male Pin

Reliability :

COMMERCIAL

Series :

M22

Insulation Material :

Polyamide (PA6T), Nylon 6T

Reference Standard :

UL

Filter Feature :

No

Current Rating (Amps) :

2A per Contact

Mount :

Through Hole

Packaging :

Tube

Connector Type :

Header

Depth :

7.7mm

Number of Positions Loaded :

All

Length :

12mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

POLARIZED HOUSING

Gender :

Male

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0
