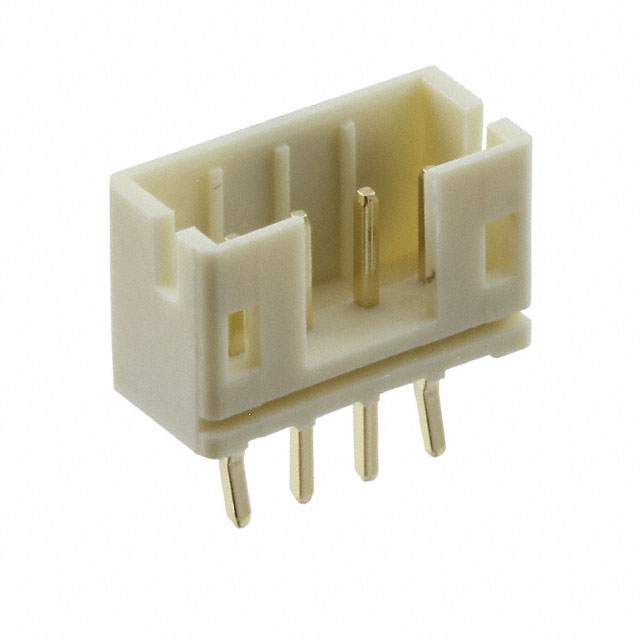

M22-2200445

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Pbfree Code :

yes

Fastening Type :

Detent Lock

JESD-609 Code :

e4

Number of Positions :

4

Contact Finish - Mating :

Gold

Packaging :

Bulk

Connector Type :

Header

Operating Temperature :

-25°C~85°C

Filter Feature :

No

Style :

Board to Cable/Wire

Contact Shape :

Square

IEC Conformance :

No

Termination :

Kinked Pin, Solder

Contact Type :

Male Pin

Number of Conductors :

ONE

Insulation Color :

Natural

Shrouding :

Shrouded - 4 Wall

Terminal Pitch :

2mm

Contact Length - Post :

0.134 3.40mm

Current Rating (Amps) :

2A per Contact

Reliability :

COMMERCIAL

Number of Positions Loaded :

All

Pitch - Mating :

0.079 2.00mm

Dielectric Withstanding Voltage :

800VAC V

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Insulation Height :

0.240 6.10mm

Mounting Type :

Through Hole

Series :

M22

RoHS Status :

ROHS3 Compliant

Insulation Material :

Polyamide (PA9T), Nylon 9T

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No

Mounting Option 1 :

GUIDE SLOT

Reach Compliance Code :

not_compliant

Number Of PCB Rows :

1

Stack Height (Mating) :

8.05mm

Mating Contact Pitch :

0.079 inch

Contact Material :

Brass

DIN Conformance :

No

Additional Feature :

RoHS Compliant

Mixed Contacts :

No

Voltage - Rated :

100V

Factory Lead Time :

9 Weeks

Mounting Option 2 :

LOCKING

Contact Resistance :

30mOhm

Reference Standard :

UL

Polarization Key :

POLARIZED HOUSING

Durability :

300 Cycles

Moisture Sensitivity Level (MSL) :

Not Applicable
