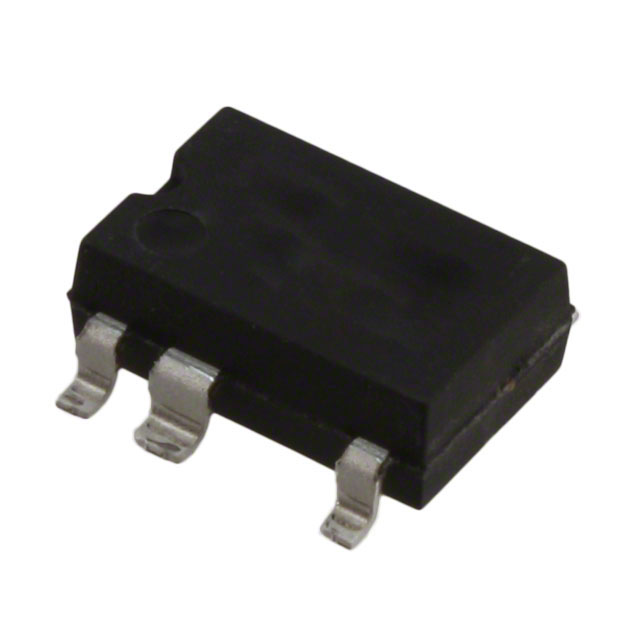

LNK606GG
- Mfr.Part #
- LNK606GG
- Manufacturer
- Power Integrations
- Package / Case
- 8-SMD (7 Leads), Gull Wing
- Datasheet
- Download
- Description
- IC OFFLINE SWITCH FLYBACK 8SMD
- Stock
- 11,879
- In Stock :
- 11,879
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Power Integrations
- Product Category :
- AC DC Converters, Offline Switches
- Published :
- 2008
- Max Power Dissipation :
- 6.1W
- Packaging :
- Tube
- Min Supply Voltage :
- 85V
- Number of Outputs :
- 1
- Max Duty Cycle :
- 55 %
- Number of Functions :
- 1
- Mounting Type :
- Surface Mount
- Output Current :
- 980mA
- Terminal Pitch :
- 2.54mm
- Frequency :
- 66kHz
- Terminal Position :
- Dual
- Number of Terminations :
- 8
- Number of Pins :
- 8
- REACH SVHC :
- No SVHC
- Operating Supply Current :
- 520μA
- Max Output Current :
- 438mA
- Termination :
- SMD/SMT
- Pin Count :
- 8
- Series :
- LinkSwitch®-II
- Output Voltage :
- 700V
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 4 (72 Hours)
- Analog IC - Other Type :
- ANALOG CIRCUIT
- Frequency - Switching :
- Up to 85kHz
- Operating Temperature :
- -40°C~150°C TJ
- Terminal Finish :
- MATTE TIN
- Peak Reflow Temperature (Cel) :
- 250
- JESD-609 Code :
- e3
- Max Input Voltage :
- 265V
- Topology :
- Flyback
- Package / Case :
- 8-SMD (7 Leads), Gull Wing
- Width :
- 6.35mm
- Output Isolation :
- Isolated
- RoHS Status :
- RoHS Compliant
- Power (Watts) :
- 6.1W
- Max Supply Voltage :
- 265V
- Length :
- 9.575mm
- Factory Lead Time :
- 8 Weeks
- Max Output Voltage :
- 700V
- Internal Switch(s) :
- yes
- Max Supply Voltage (AC) :
- 265V
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Power Dissipation :
- 5.5W
- Min Supply Voltage (AC) :
- 85V
- Output Power :
- 5.5W
- Surface Mount :
- yes
- Fault Protection :
- Current Limiting, Open Loop, Over Temperature, Short Circuit
- Datasheets
- LNK606GG

AC DC Converters, Offline Switches Power Integrations LNK606GG Overview
The LNK606GG from Power Integrations is a robust integrated circuit designed specifically for offline switching and flyback converter applications. This 8-SMD component streamlines power supply solutions by integrating a 132 kHz switching frequency, which allows for a reduced transformer size and improved efficiency. With its high level of integration, the LNK606GG reduces the external component count, leading to cost-effective and compact power supply designs. Ideal for businesses looking to streamline production while maintaining high reliability and performance, this IC serves as a crucial element in various power management solutions.
