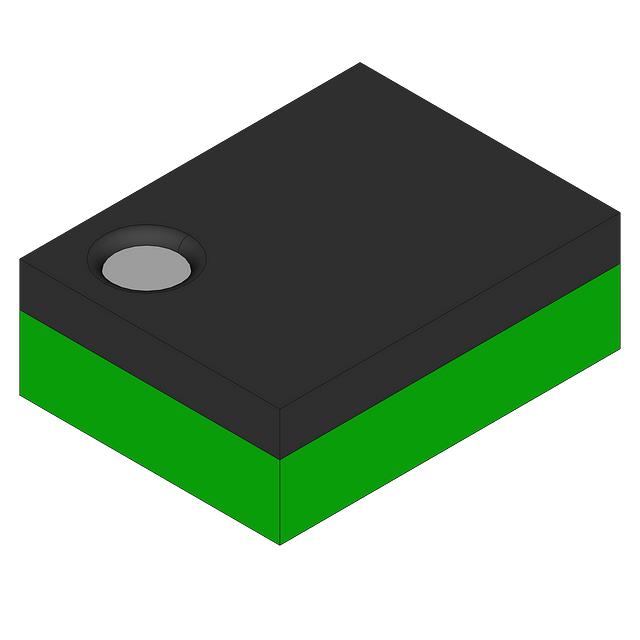

LMS4684ITL

Manufacturer :

National Semiconductor

Product Category :

Analog Switches, Multiplexers, Demultiplexers

Number of Inputs :

2

Current - Leakage (IS(off)) (Max) :

1nA

Supply Voltage :

3V

Number of Outputs :

4

Length :

2mm

Switch Time (Ton, Toff) (Max) :

60ns, 40ns

On-State Resistance (Max) :

800mOhm

Factory Lead Time :

6 Weeks

Terminal Form :

Ball

Radiation Hardening :

No

ECCN Code :

EAR99

Charge Injection :

200pC

RoHS Status :

ROHS3 Compliant

Multiplexer/Demultiplexer Circuit :

2:1

Power Supplies :

3V

Number of Functions :

2

Supply Type :

Single

Package / Case :

12-WFBGA

Mount :

Surface Mount

Switching :

BREAK-BEFORE-MAKE

Voltage - Supply, Single (V+) :

1.8V~5.5V

JESD-609 Code :

e1

Thickness :

675μm

Terminal Pitch :

0.5mm

Mounting Type :

Surface Mount

Operating Supply Current :

5nA

Number of Terminations :

12

Crosstalk :

-72dB @ 100kHz

Drain to Source Resistance :

800mOhm

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Turn On Delay Time :

60 ns

Number of Pins :

12

Packaging :

Tape and Reel (TR)

Terminal Position :

BOTTOM

Operating Temperature :

-40°C~85°C TA

Nominal Supply Current :

5nA

Base Part Number :

LMS4684

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Width :

1.8mm

Pbfree Code :

yes

Min Supply Voltage :

1.8V

Operating Supply Voltage :

5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

675μm

Channel-to-Channel Matching (ΔRon) :

1.11m Ω

Turn-Off Delay Time :

40 ns

Peak Reflow Temperature (Cel) :

260

Resistance :

500MOhm

REACH SVHC :

No SVHC

Number of Channels :

2

Lead Free :

Lead Free

Max Supply Voltage :

5.5V

Supply Current-Max (Isup) :

0.000005mA

Switch Circuit :

SPDT
