LM4F232H5BBFIGR

Manufacturer :

Texas Instruments

Product Category :

Microcontrollers

Max Power Dissipation :

560mW

EEPROM Size :

2K x 8

Number of Terminations :

157

Mounting Type :

Surface Mount

Lead Free :

Contains Lead

Data Bus Width :

32b

Base Part Number :

4F232H5

Program Memory Size :

256KB 256K x 8

Series :

Stellaris® ARM® Cortex®-M4F 230

Watchdog Timer :

yes

Mount :

Surface Mount

Bit Size :

32

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Program Memory Type :

Flash

Frequency :

80MHz

Terminal Position :

BOTTOM

Number of Pins :

157

Packaging :

Tape and Reel (TR)

Terminal Pitch :

0.635mm

Number of UART Channels :

8

RAM Size :

32K x 8

Operating Temperature :

-40°C~85°C TA

Number of A/D Converters :

2

CPU Family :

CORTEX-M4F

Operating Supply Voltage :

3.3V

Core Size :

32-Bit

Oscillator Type :

Internal

Interface :

CAN, I2C, IrDA, LIN, SPI, UART, USART, USB

Package / Case :

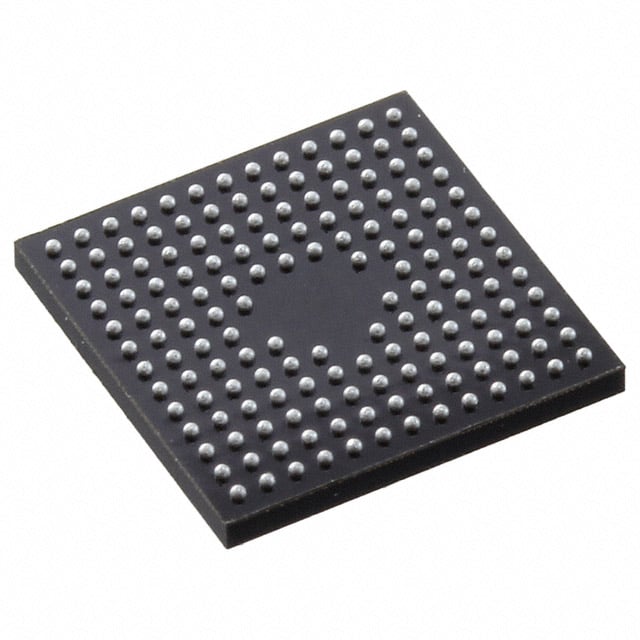

157-VFBGA

Core Architecture :

ARM

Core Processor :

ARM® Cortex®-M4

Number of Bits :

12

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Terminal Form :

Ball

Data Converter :

A/D 24x12b

Radiation Hardening :

No

Peripherals :

Brown-out Detect/Reset, DMA, POR, PWM, WDT

Number of I/O :

120

Connectivity :

CANbus, I2C, IrDA, LINbus, Microwire, QEI, SPI, SSI, UART/USART, USB OTG

RoHS Status :

Non-RoHS Compliant

Memory Size :

256KB

Voltage - Supply (Vcc/Vdd) :

2.97V~3.63V
