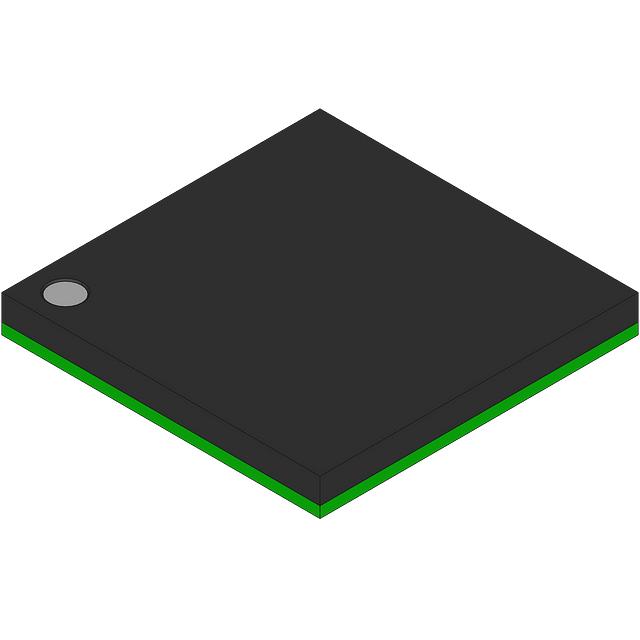

LM3S1958-IBZ50-A2

Manufacturer :

Luminary Micro

Product Category :

Microcontrollers

Number of Terminations :

108

Bit Size :

32

Data Bus Width :

32b

Number of A/D Converters :

1

Peak Reflow Temperature (Cel) :

260

Package / Case :

108-LFBGA

Interface :

I2C, IrDA, SPI, UART, USART

Number of Timers/Counters :

6

Supply Voltage :

2.5V

Series :

Stellaris® ARM® Cortex®-M3S 1000

Frequency :

50MHz

Packaging :

Tape and Reel (TR)

Core Architecture :

ARM

Lead Free :

Lead Free

Core Size :

32-Bit

Number of UART Channels :

3

Voltage - Supply (Vcc/Vdd) :

2.25V~2.75V

Number of Bits :

10

Supply Voltage-Max (Vsup) :

2.75V

Pin Count :

108

Length :

10mm

DMA Channels :

No

Program Memory Size :

256KB 256K x 8

Program Memory Type :

Flash

Has ADC :

yes

Operating Supply Voltage :

3.3V

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

RAM Size :

64K x 8

Terminal Pitch :

0.8mm

Number of Pins :

108

Terminal Position :

BOTTOM

Mounting Type :

Surface Mount

RoHS Status :

ROHS3 Compliant

Peripherals :

Brown-out Detect/Reset, POR, PWM, WDT

Terminal Form :

Ball

PWM Channels :

yes

DAC Channels :

No

Oscillator Type :

Internal

JESD-609 Code :

e1

Connectivity :

I2C, IrDA, SCI, SPI, UART/USART

Memory Size :

256KB

Number of I/O :

52

Core Processor :

ARM® Cortex®-M3

Operating Temperature :

-40°C~85°C TA

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Data Converter :

A/D 8x10b

Watchdog Timer :

yes

Radiation Hardening :

No

Base Part Number :

LM3S1958

Mount :

Surface Mount
