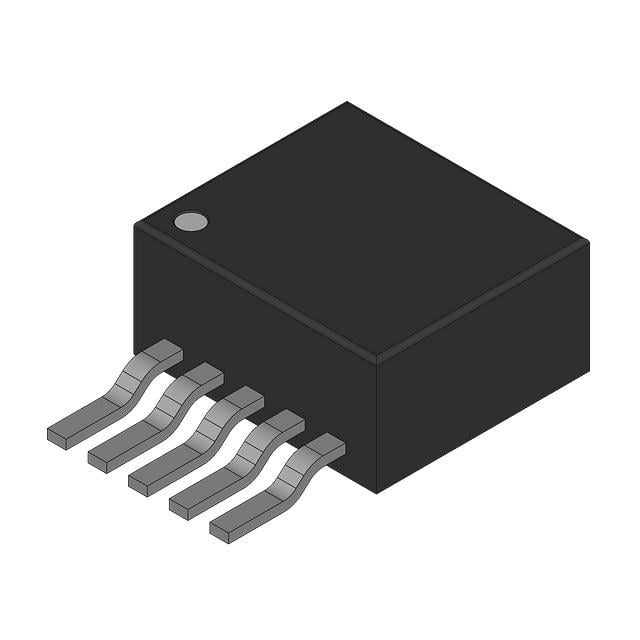

LM2575HVSX-ADJ

Manufacturer :

National Semiconductor

Product Category :

Voltage Regulators - DC DC Switching Regulators

Lifecycle Status :

NRND (Last Updated: 1 week ago)

Output Voltage :

57V

Operating Temperature :

-40°C~125°C TJ

Peak Reflow Temperature (Cel) :

235

Topology :

Buck

Number of Outputs :

1

Output Configuration :

Positive

Analog IC - Other Type :

SWITCHING REGULATOR

Input Voltage-Nom :

12V

Terminal Form :

Gull wing

Efficiency :

77 %

Series :

SIMPLE SWITCHER®

Base Part Number :

LM2575

RoHS Status :

Non-RoHS Compliant

Number of Pins :

5

Terminal Finish :

Tin/Lead (Sn/Pb)

Mounting Type :

Surface Mount

Packaging :

Tape and Reel (TR)

Voltage - Output (Min/Fixed) :

1.23V

Synchronous Rectifier :

No

Quiescent Current :

10mA

Control Mode :

VOLTAGE-MODE

Voltage - Input (Max) :

60V

Operating Supply Voltage :

60V

ECCN Code :

EAR99

Voltage - Input (Min) :

4V

Mount :

Surface Mount

Terminal Position :

Single

JESD-609 Code :

e0

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Output Type :

Adjustable

Lead Free :

Contains Lead

Package / Case :

TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Max Output Current :

1A

Thickness :

4.58mm

Frequency - Switching :

52kHz

Length :

10.16mm

Height :

4.83mm

Number of Terminations :

5

Width :

8.42mm

Control Technique :

PULSE WIDTH MODULATION

Function :

Step-Down
