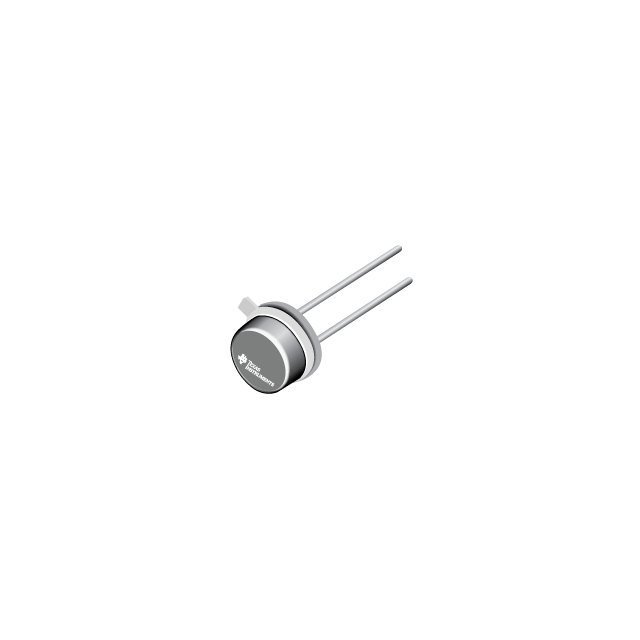

LM185H-2.5-SMD

Manufacturer :

National Semiconductor

Product Category :

Voltage Reference

Temp Coef of Voltage-Max :

150 ppm/°C

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Package / Case :

TO-46-2 Metal Can

Surface Mount :

No

Temperature Coefficient :

150ppm/°C

Noise - 10Hz to 10kHz :

-

Current - Supply :

-

Output Voltage-Max :

2.538 V

Tolerance :

±1.5%

Width :

4.699 mm

Series :

LM185-2.5QML

Terminal Form :

Wire

Terminal Position :

BOTTOM

Number of Functions :

1

Manufacturer :

Texas

Voltage - Output (Min/Fixed) :

2.5V

Pin Count :

2

Analog IC - Other Type :

TWO TERMINAL VOLTAGE REFERENCE

Supplier Device Package :

TO-2

Technology :

Bipolar

Trim/Adjustable Output :

No

Noise - 0.1Hz to 10Hz :

-

HTS Code :

8542.39.00.01

Operating Temperature :

-55°C ~ 125°C (TA)

Screening Level :

38535Q/M;38534H;883B

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Output Voltage-Min :

2.462 V

Current - Output :

20 mA

ECCN Code :

EAR99

Terminal Pitch :

2.54 mm

Current - Cathode :

20 µA

Package Shape :

Round

Number of Outputs :

1

Seated Height-Max :

2.362 mm

Output Type :

FIXED

JESD-30 Code :

O-MBCY-W2

Reach Compliance Code :

not_compliant

Subcategory :

Voltage References

Product Status :

Active

Mounting Type :

Through Hole

Number of Terminals :

2

Voltage - Input :

-

Length :

4.699 mm

Package :

Tray

Brand Name :

Texas

Reference Type :

Shunt

Temperature Grade :

Military

Qualification Status :

Not Qualified

Voltage Tolerance-Max :

1.52%
