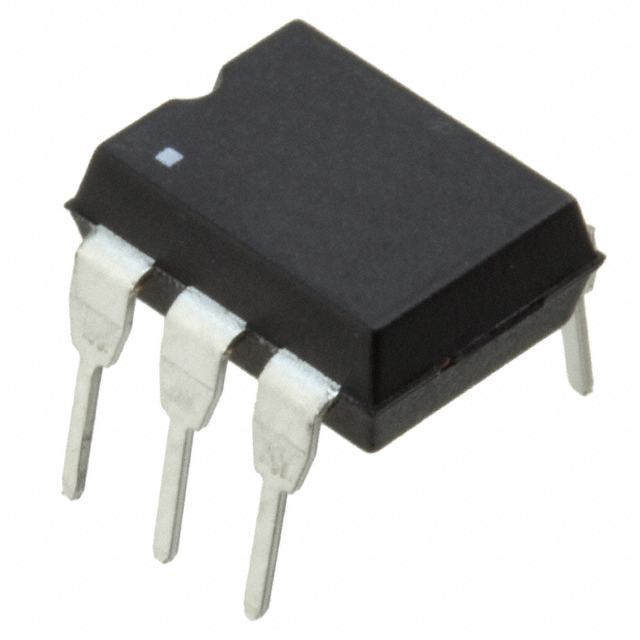

LH1501BT

Manufacturer :

Vishay

Product Category :

Solid State Relays

Mounting Type :

Through Hole

Mount :

Through Hole

REACH SVHC :

Unknown

Number of Pins :

6

Factory Lead Time :

12 Weeks

Throw Configuration :

SPST

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Forward Current :

900μA

Max Output Current :

200mA

Radiation Hardening :

No

Relay Type :

Relay

Package / Case :

6-DIP (0.300, 7.62mm)

Resistance :

20Ohm

Series :

LH1501

Termination :

PC Pin

Output Current :

200mA

Output Type :

AC, DC

Input Current :

50mA

Max Operating Temperature :

85°C

Isolation Voltage :

3.75kV

Max Output Voltage :

350V

On-State Resistance (Max) :

20Ohms

Min Operating Temperature :

-40°C

Max Input Current :

50mA

Supplier Device Package :

6-DIP

RoHS Status :

ROHS3 Compliant

Voltage - Input :

1.26VDC

Output Voltage :

350V

Voltage - Load :

0V~350V

Published :

2011

Load Current :

150mA

Width :

8.6mm

Max Input Voltage :

1.45V

Packaging :

Tube

Lead Free :

Lead Free

Circuit :

SPST-NC (1 Form B)

Termination Style :

PC Pin
