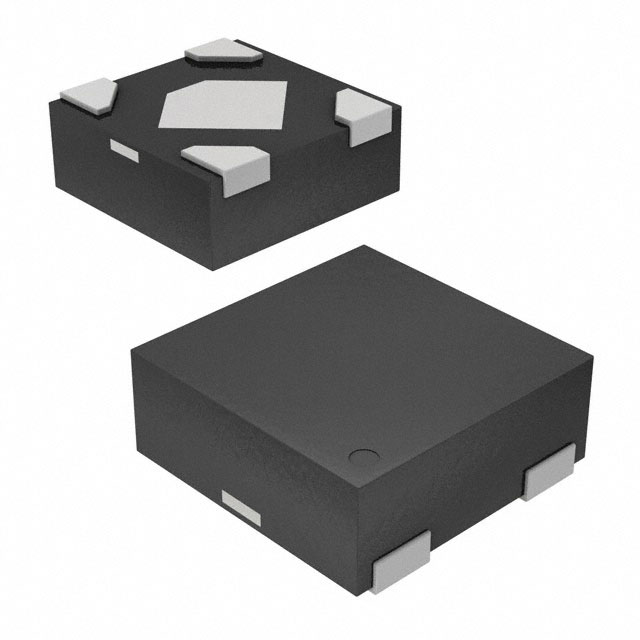

LD39020DTPU25R

Manufacturer :

STMicroelectronics

Product Category :

Voltage Regulators - Linear

Number of Terminations :

4

JESD-30 Code :

S-PDSO-N4

Number of Functions :

1

PSRR :

80dB ~ 55dB (1kHz ~ 100kHz)

Current - Quiescent (Iq) :

40μA

Output Configuration :

Positive

Current - Supply (Max) :

100μA

Lifecycle Status :

ACTIVE (Last Updated: 6 months ago)

Current - Output :

200mA

Factory Lead Time :

20 Weeks

Protection Features :

Over Current, Over Temperature, Soft Start

ECCN Code :

EAR99

Input Voltage (Min) :

3.5V

RoHS Status :

Non-RoHS Compliant

Output Voltage1-Max :

2.575V

Voltage - Input (Max) :

5.5V

Voltage Dropout (Max) :

0.35V @ 200mA

Surface Mount :

yes

Terminal Pitch :

0.65mm

Output Type :

FIXED

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Output (Min/Fixed) :

2.5V

Height Seated (Max) :

0.4mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Control Features :

Enable

Output Voltage1-Min :

2.425V

Operating Temperature :

-40°C~125°C TJ

Number of Regulators :

1

Base Part Number :

LD39020

Terminal Form :

NO LEAD

Packaging :

Tape and Reel (TR)

Terminal Position :

Dual

Mounting Type :

Surface Mount

Package / Case :

4-XDFN Exposed Pad

Output Voltage 1 :

2.5V
