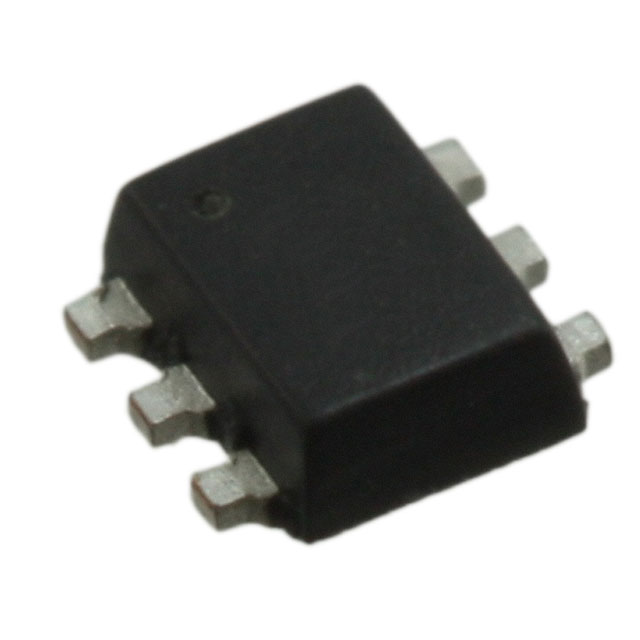

LD39015XG10R

Manufacturer :

STMicroelectronics

Product Category :

Voltage Regulators - Linear

Voltage Tolerance-Max :

3%

Min Input Voltage :

1.5V

Terminal Position :

Dual

Output Type :

FIXED

Base Part Number :

LD39015

Packing Method :

Tape and Reel

Voltage - Input (Max) :

5.5V

Accuracy :

2 %

Protection Features :

Over Current, Over Temperature

Terminal Pitch :

0.5mm

Voltage Dropout (Max) :

0.1V @ 100mA

Mount :

Surface Mount

Package / Case :

SOT-563, SOT-666

Packaging :

Tape and Reel (TR)

Output Voltage :

1V

Number of Terminations :

6

Control Features :

Enable

ECCN Code :

EAR99

Max Output Current :

150mA

Number of Pins :

6

Current - Quiescent (Iq) :

50μA

Pin Count :

6

Current - Supply (Max) :

70µA

Factory Lead Time :

32 Weeks

Number of Functions :

1

PSRR :

65dB ~ 62dB (1kHz ~ 10kHz)

Quiescent Current :

50μA

Number of Regulators :

1

Operating Temperature :

-40°C~125°C

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Lead Free :

Lead Free

Mounting Type :

Surface Mount

Input Voltage Absolute-Max :

7V

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

Dropout Voltage1-Nom :

0.08V

Output Configuration :

Positive

Output Voltage 1 :

1V

Number of Outputs :

1
