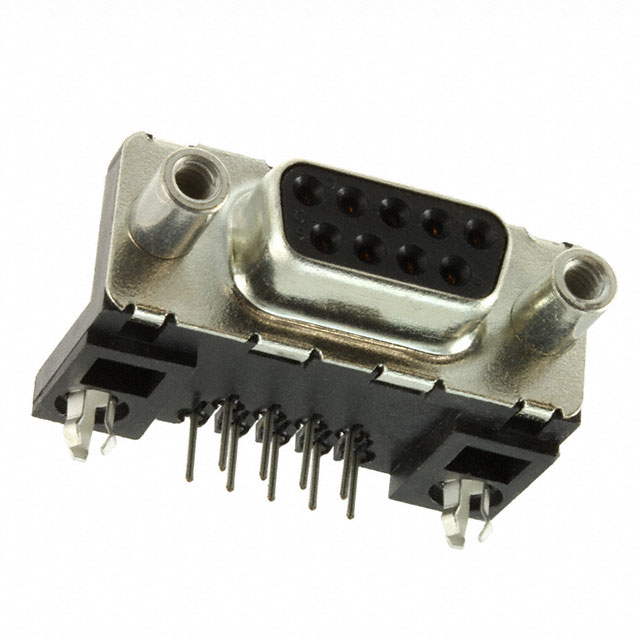

LD09S13A4GV00LF
Or copy the link below:
- Mfr.Part #
- LD09S13A4GV00LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 9POS R/A SLDR
- Stock
- 107,100
- In Stock ：
- 107,100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Operating Temperature :
- -55°C~105°C
- Current Rating (Amps) :
- 5A
- Color :
- Black
- Number of Positions :
- 9
- Contact Finish :
- Gold
- Contact Finish Thickness :
- Flash
- Shell Finish :
- TIN OVER NICKEL
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Total Number of Contacts :
- 9
- Contact Type :
- Signal
- Gender :
- Receptacle
- Backset Spacing :
- 0.409 (10.40mm)
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Voltage - Rated :
- 250V
- Body Depth :
- 0.577 inch
- Shell Material, Finish :
- Nickel, Tin Plated
- Body Breadth :
- 0.53 inch
- Factory Lead Time :
- 10 Weeks
- Dielectric Material :
- Thermoplastic
- Reliability :
- COMMERCIAL
- PCB Contact Pattern :
- STAGGERED
- Connector Style :
- D-Sub
- Packaging :
- Tray
- Number of Rows :
- 2
- Reference Standard :
- UL
- Feature :
- Board Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- Series :
- LD
- RoHS Status :
- RoHS Compliant
- Length - Termination :
- 0.114 inch
- Termination :
- Solder
- Insulation Resistance :
- 5000000000Ohm
- Number Of PCB Rows :
- 2
- Published :
- 2014
- Shell Size, Connector Layout :
- 1 DE E
- Connector Type :
- Receptacle, Female Sockets
- Datasheets
- LD09S13A4GV00LF
LD09S13A4GV00LF Documents
LD Series D-Sub Receptacle, Female Sockets 9-Position Receptacle Signal Solder 1 DE E Board Edge, Through Hole, Right Angle Copper Alloy Gold Nickel, Tin Plated
LD09S13A4GV00LF Overview
The product comes in a package of Receptacle, Female Sockets.Its mounting type is Board Edge, Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the LD Series of products.A number of features make it more powerful because of its Board Lock feature.There is no operating temperature for the device.
LD09S13A4GV00LF Features
LD series
LD09S13A4GV00LF Applications
There are a lot of Amphenol ICC (FCI)
LD09S13A4GV00LF D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
