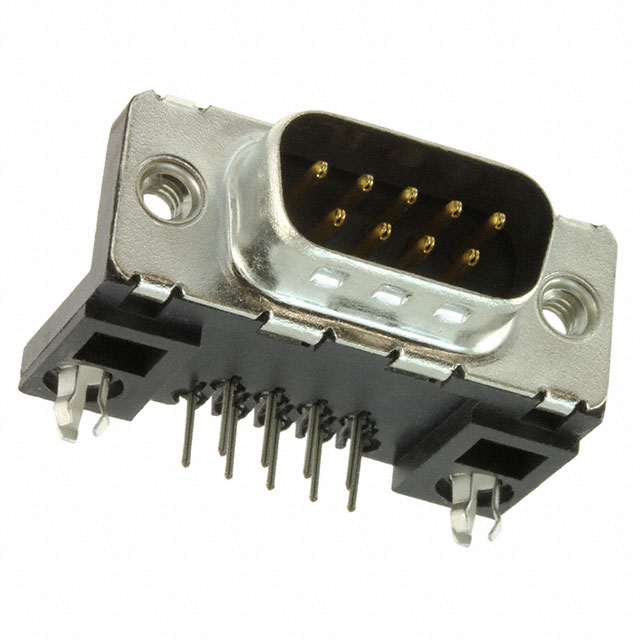

LD09P13A4GX00LF
Or copy the link below:
- Mfr.Part #
- LD09P13A4GX00LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 9POS R/A SLDR
- Stock
- 841
- In Stock ：
- 841
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- D-Sub Connector Assemblies
- Body Breadth :
- 0.53 inch
- Connector Type :
- Plug, Male Pins
- PCB Contact Pattern :
- STAGGERED
- Color :
- Black
- Shell Size, Connector Layout :
- 1 DE E
- Voltage - Rated :
- 250V
- Feature :
- Board Lock, Grounding Indents
- Termination :
- Solder
- Factory Lead Time :
- 10 Weeks
- Series :
- LD
- Reference Standard :
- UL
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Flange Feature :
- Housing/Shell (4-40)
- Contact Finish Thickness :
- Flash
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Style :
- D-Sub
- Shell Finish :
- TIN OVER NICKEL
- Operating Temperature :
- -55°C~105°C
- Contact Type :
- Signal
- Number Of PCB Rows :
- 2
- Shell Material, Finish :
- Nickel, Tin Plated
- Contact Material :
- COPPER ALLOY
- Mounting Option 2 :
- LOCKING
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Manufacturer Package Identifier :
- LD09P13A4GX00LF
- Backset Spacing :
- 0.409 (10.40mm)
- Current Rating :
- 5A
- Body Depth :
- 0.577 inch
- Dielectric Material :
- Thermoplastic
- Insulation Resistance :
- 5000000000Ohm
- Reliability :
- COMMERCIAL
- Packaging :
- Tray
- Total Number of Contacts :
- 9
- Rated Current (Signal) :
- 5A
- Height :
- 13.86mm
- Published :
- 2014
- Length - Termination :
- 0.114 inch
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Gold
- Number of Positions :
- 9
- Datasheets
- LD09P13A4GX00LF
LD09P13A4GX00LF Documents
LD Series D-Sub Plug, Male Pins 9-Position Signal Solder 1 DE E Board Edge, Through Hole, Right Angle Copper Alloy Gold Nickel, Tin Plated
LD09P13A4GX00LF Overview
This product is packaged in a Plug, Male Pins box.There is a Board Edge, Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tray.Product number LD belongs to the LD Series.In many ways, it is more powerful due to its Board Lock, Grounding Indents feature.This device operates at a temperature of -55°C~105°C.
LD09P13A4GX00LF Features
LD series
LD09P13A4GX00LF Applications
There are a lot of Amphenol ICC (FCI)
LD09P13A4GX00LF D-Sub Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
