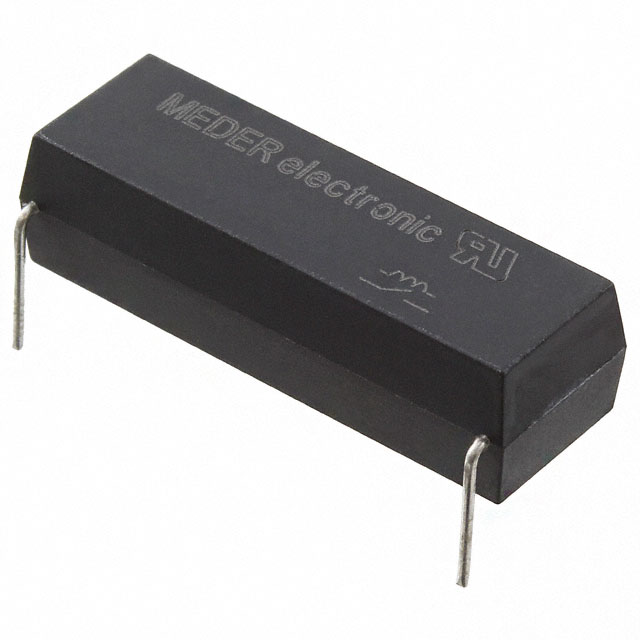

KT24-1A-40L-THT
Or copy the link below:
- Mfr.Part #
- KT24-1A-40L-THT
- Manufacturer
- Standex Electronics
- Package / Case
- Datasheet
- Download
- Description
- REED RELAY 1 FORM A 24V TH
- Stock
- 929
- In Stock ：
- 929
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Standex Electronics
- Product Category :
- Reed Relays
- Must Operate Voltage :
- 16VDC
- Mount :
- Through Hole
- Packaging :
- Tube
- Operate Time :
- 1.1 ms
- Coil Power :
- 320mW
- Seal Rating :
- Sealed - Fully
- Coil Voltage :
- 24VDC
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 12 Weeks
- Contact Form :
- SPST-NO (1 Form A)
- Coil Type :
- Non Latching
- RoHS Status :
- ROHS3 Compliant
- Contact Current(DC)-Max :
- 1A
- ECCN Code :
- EAR99
- Coil/Input Supply Type :
- DC
- Published :
- 2013
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact (DC) Max Rating R Load :
- 1A@1000VDC
- Body Breadth :
- 11 mm
- HTS Code :
- 8536.49.00.50
- Switching Voltage :
- 1000VAC 1000VDC -Max
- Operating Temperature :
- -40°C~100°C
- Termination Style :
- PC Pin
- Coil Resistance :
- 1.8kOhm
- REACH SVHC :
- Unknown
- Contact/Output Supply Type :
- AC/DC
- Throw Configuration :
- SPST
- Coil Voltage (DC) :
- 24V
- Contact (AC) Max Rating R Load :
- 1A@1000VAC
- Physical Dimension :
- 30mm x 11mm x 9mm
- Release Time :
- 0.1 ms
- Body Length or Diameter :
- 30mm
- Termination :
- PC Pin
- Coil Current :
- 13.3mA
- Relay Type :
- Reed
- Contact Current(AC)-Max :
- 1A
- Width :
- 10.2mm
- Relay Action :
- Momentary
- Body Height :
- 9mm
- Contact Voltage(AC)-Max :
- 1000V
- Switching Current :
- 1A
- Must Release Voltage :
- 2.9VDC
- Contact Voltage(DC)-Max :
- 1000V
- Series :
- KT
- Datasheets
- KT24-1A-40L-THT
