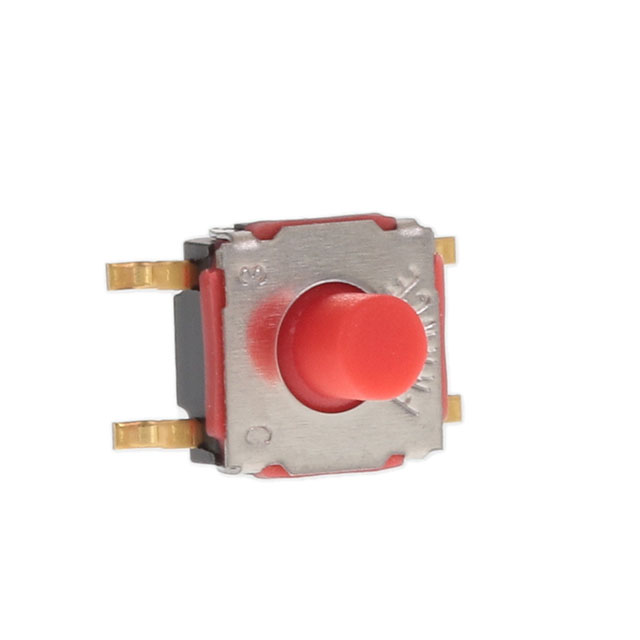

KSC403G 50SH LFG

Manufacturer :

C&K

Product Category :

Switch Action :

MOMENTARY-TACTILE

Number of Switches :

1

Mounting Feature :

SURFACE MOUNT-STRAIGHT

HTS Code :

8536.50.90.40

Circuit Configuration :

1x1

Actuator Length :

0.091 inch

Body Length or Diameter :

6.2 mm

Contact Current(DC)-Max :

0.01 A

Pbfree Code :

yes

ECCN Code :

EAR99

Body Breadth :

6.2 mm

Sealing :

IP67

Termination Type :

Solder

Contact Voltage(DC)-Max :

32 V

Switch Function :

SPST

Switch Type :

KEYPAD SWITCH

JESD-609 Code :

e4

Insulation Resistance :

10000000 Ω

Surface Mount :

No

Packing Method :

Tape and Reel

Reach Compliance Code :

Compliant

Terminal Finish :

Gold (Au) - with Nickel (Ni) barrier

Actuator Type :

SOFT TYPE

Contact Resistance :

0.1 mΩ

End Contact Plating :

Gold

Body Height :

2.5 mm

Contact Bounce Time-Max :

1 ms

Operating Force-Max :

1.2 N

Center Contact Plating :

Gold
