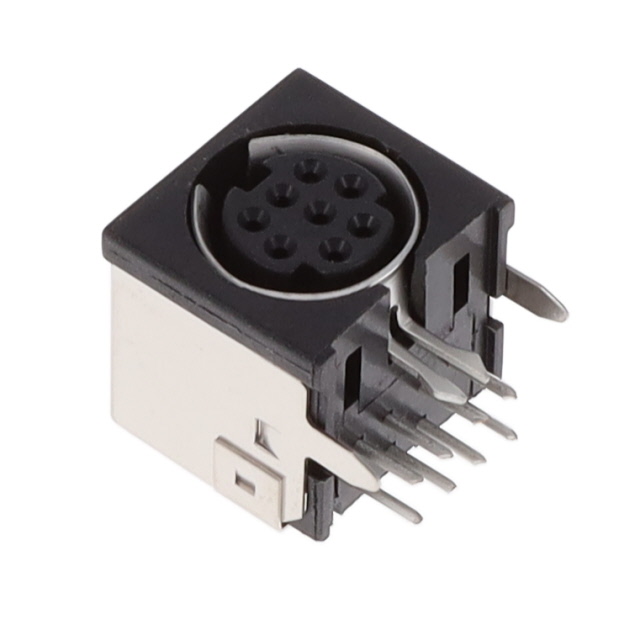

KMDGX-8S-AS
Or copy the link below:
- Mfr.Part #
- KMDGX-8S-AS
- Manufacturer
- Kycon
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE MINI DIN 8P SLDR
- Stock
- 482
- In Stock ：
- 482
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Kycon
- Product Category :
- Circular Connector Assemblies
- Contact Resistance :
- 60mOhm
- Body/Shell Style :
- PLUG
- DIN Conformance :
- yes
- Operating Temperature :
- -25°C~80°C
- Reference Standard :
- UL
- Factory Lead Time :
- 20 Weeks
- Option :
- GENERAL PURPOSE
- Shell Finish :
- Nickel
- Number of Ports :
- 1
- Polarization Key :
- POLARIZED HOUSING
- Series :
- KMDGX
- Contact Finish Thickness - Mating :
- Flash
- IEC Conformance :
- No
- Shielding :
- Shielded
- Durability :
- 500 Cycles
- Body Length or Diameter :
- 0.551 inch
- Length - Termination :
- 0.125 inch
- Applications :
- Audio, Video
- Dielectric Withstanding Voltage :
- 700VAC V
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 8
- Published :
- 2011
- Current Rating (Amps) :
- 2A
- Insert Material :
- Polybutylene Terephthalate (PBT)
- Packaging :
- Tray
- Radiation Hardening :
- No
- MIL Conformance :
- No
- RoHS Status :
- RoHS Compliant
- Orientation :
- Keyed
- Shell Material :
- Polybutylene Terephthalate (PBT)
- EMI Shielded :
- yes
- Feature :
- Board Guide, Board Lock
- Total Number of Contacts :
- 8
- Reliability :
- COMMERCIAL
- Connector Type :
- Receptacle, Female Sockets
- Fastening Type :
- Push-Pull
- Mounting Type :
- Through Hole, Right Angle
- Termination :
- Solder
- Color :
- Black, Silver
- Mount :
- Through Hole
- Contact Material :
- COPPER ALLOY
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 12VDC
- Insulation Resistance :
- 500000000Ohm
- Shell Size - Insert :
- Mini DIN
- JESD-609 Code :
- e4
- Body Breadth :
- 0.511 inch
- Contact Style :
- RND PIN-SKT
- Datasheets
- KMDGX-8S-AS
KMDGX-8S-AS Documents
Receptacle, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 8 Positions Solder Gold NICKEL Tray Keyed Push-Pull
KMDGX-8S-AS Overview
This product is packaged in a Receptacle, Female Sockets box.Through Hole, Right Angle indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the KMDGX Series.In many ways, Board Guide, Board Lock makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -25°C~80°C.
KMDGX-8S-AS Features
KMDGX series
KMDGX-8S-AS Applications
There are a lot of Kycon, Inc.
KMDGX-8S-AS Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
