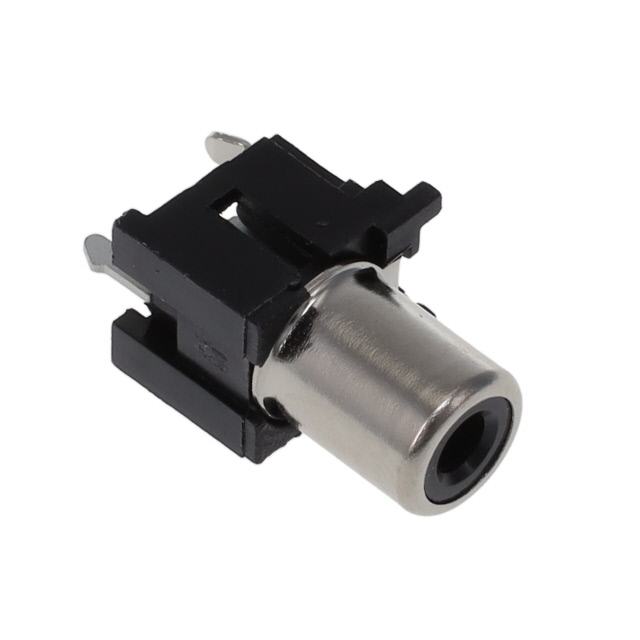

KLPX-0848-2-B

Manufacturer :

Kycon

Product Category :

Audio Connectors

Number of Poles :

2

DIN Conformance :

No

Mount :

Through Hole

Signal Lines :

Mono

Number of Conductors :

ONE

Reference Standard :

UL

Pitch :

8.7mm

Orientation :

Vertical

Connector Type :

Phono (RCA) Jack

Factory Lead Time :

20 Weeks

Polarization Key :

POLAR PIN POSITION

Radiation Hardening :

No

Feature :

Board Lock

ECCN Code :

EAR99

Body Color :

Silver, Black

Insulation Color :

Black

Number of Ports :

1

Shielding :

Unshielded

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Body Length or Diameter :

0.394 inch

Voltage - Rated :

16VDC

Termination :

Kinked Pin

Insulation Material :

Nickel

Internal Switch(s) :

Does Not Contain Switch

Durability :

5000 Cycles

Body Material :

COPPER ALLOY

IEC Conformance :

No

Body Depth :

0.768 inch

Contact Material :

COPPER ALLOY

Gender :

FEMALE

Housing Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Resistance :

30mOhm

Contact Style :

RND PIN-SKT

Actual Diameter :

0.130 (3.30mm ID), 0.327 (8.30mm OD)

Industry Recognized Mating Diameter :

3.20mm ID, 9.00mm OD (RCA)

Current Rating (Amps) :

300mA

Mounting Type :

Through Hole

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Contact Material - Plating :

Tin

Dielectric Withstanding Voltage :

700VAC V

Number of Contacts :

2

Reliability :

COMMERCIAL

RoHS Status :

RoHS Compliant

Series :

KLPX

Operating Temperature :

-20°C~60°C

Packaging :

Bulk
