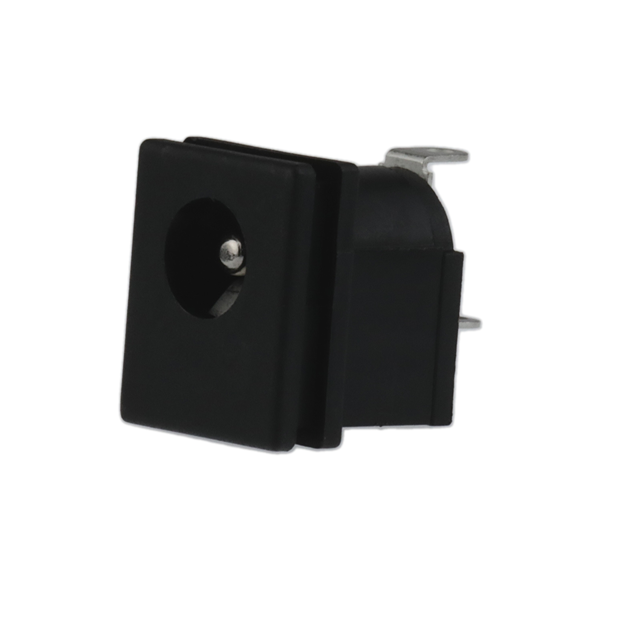

KLDPX-0207-B

Manufacturer :

Kycon

Product Category :

Power Connectors

Gender :

Male

Termination :

Solder Eyelet(s)

Shielding :

Unshielded

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Contact Gender :

FEMALE

Series :

KLDPX

Contact Material :

Brass; Copper Alloy

ECCN Code :

EAR99

Radiation Hardening :

No

Insulation Resistance :

100MOhm

Operating Temperature :

-25°C~85°C

DIN Conformance :

No

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Actual Diameter :

0.098 (2.50mm ID), 0.260 (6.60mm OD)

Material Flammability Rating :

UL94 V-0

Orientation :

Straight

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Mounting Type :

Through Hole

Contact Material - Plating :

Tin

Option :

GENERAL PURPOSE

Published :

2006

RoHS Status :

RoHS Compliant

HTS Code :

8536.69.40.20

Current Rating :

3.5A

MIL Conformance :

No

Pin Diameter :

2.5 mm

Internal Switch(s) :

Single Switch, Normally Closed

Number of Contacts :

1

Factory Lead Time :

20 Weeks

Body Color :

Black

Connector Type :

JACK

Voltage - Rated DC :

24V

Mount :

Wall

Housing Material :

Polybutylene Terephthalate (PBT), Glass Filled
