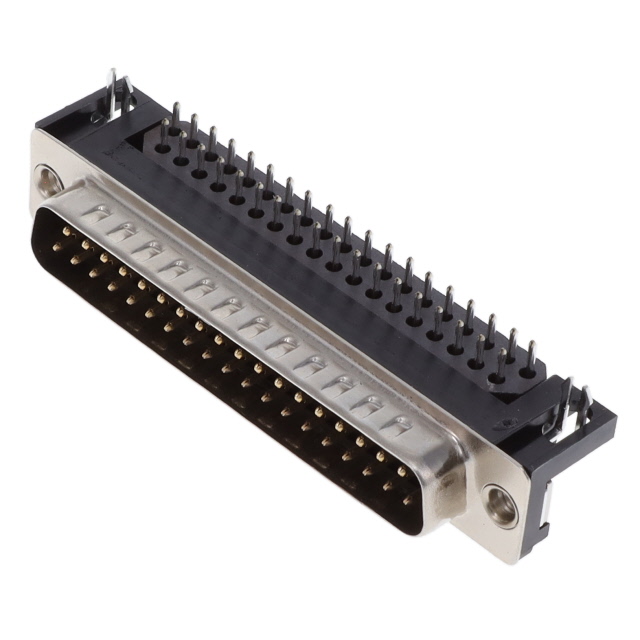

KF22X-C37P-N

Manufacturer :

Kycon

Product Category :

D-Sub Connector Assemblies

Insulation Resistance :

1000000000Ohm

Number Of PCB Rows :

2

Flange Feature :

Housing/Shell (4-40)

Contact Resistance :

13mOhm

Shell Finish :

Tin

Series :

KF22X

Mounting Type :

Through Hole, Right Angle

Empty Shell :

No

Contact Finish Thickness :

Flash

Body Breadth :

0.494 inch

Gender :

Male

Shell Material :

Steel

Mixed Contacts :

No

Reference Standard :

UL

Contact Type :

Signal

Voltage - Rated :

30V

Filter Feature :

No

MIL Conformance :

No

Mounting Option 2 :

THREADED INSERT

IEC Conformance :

No

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Material Flammability Rating :

UL94 V-0

Number of Rows :

2

Operating Temperature :

-55°C~105°C

Reliability :

COMMERCIAL

Contact Finish :

Gold

Option :

GENERAL PURPOSE

Contact Form :

Stamped

Termination :

Solder

Current Rating :

5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shell Size, Connector Layout :

4 DC C

Body Depth :

0.488 inch

Connector Style :

D-Sub

Total Number of Contacts :

37

Shell Material, Finish :

Steel, Nickel Plated

Contact Material :

Brass

PCB Contact Pattern :

STAGGERED

DIN Conformance :

No

Connector Type :

Plug, Male Pins

Mating Contact Pitch :

0.109 inch

Number of Positions :

37

RoHS Status :

RoHS Compliant

Feature :

Board Lock, Grounding Indents

Packaging :

Tray

Current Rating (Amps) :

2A

Dielectric Withstanding Voltage :

1000VAC V

Color :

Black

Plating :

Tin

Factory Lead Time :

20 Weeks

Backset Spacing :

0.318 (8.08mm)
