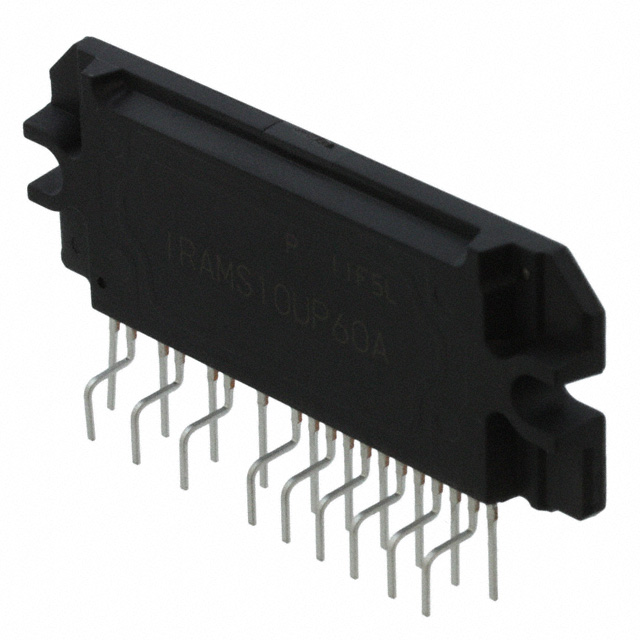

IRAMS10UP60A
Or copy the link below:
- Mfr.Part #
- IRAMS10UP60A
- Manufacturer
- Infineon Technologies
- Package / Case
- 23-PowerSIP Module, 19 Leads, Formed Leads
- Datasheet
- Download
- Description
- IC MOD PWR INTELLIGENT 10A 600V
- Stock
- 7,045
- In Stock ：
- 7,045
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Infineon Technologies
- Product Category :
- Power Driver Modules
- Type :
- IGBT
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Collector Emitter Voltage (VCEO) :
- 600V
- Output Voltage :
- 600V
- Lead Free :
- Lead Free
- Terminal Finish :
- Tin/Lead (Sn/Pb)
- Frequency :
- 20kHz
- Max Collector Current :
- 10A
- Series :
- iMOTION™
- Turn On Delay Time :
- 470 ns
- Nominal Supply Current :
- 120μA
- Number of Terminations :
- 23
- Length :
- 61.976mm
- Voltage - Isolation :
- 2000Vrms
- Temperature Grade :
- Automotive
- Configuration :
- 3 Phase
- Turn-Off Delay Time :
- 615 ns
- Min Operating Temperature :
- -40°C
- Package / Case :
- 23-PowerSIP Module, 19 Leads, Formed Leads
- Number of Outputs :
- 3
- Terminal Pitch :
- 1.98mm
- Max Operating Temperature :
- 125°C
- Mount :
- Through Hole
- Number of Pins :
- 23
- RoHS Status :
- RoHS Compliant
- Mounting Type :
- Through Hole
- REACH SVHC :
- No SVHC
- Width :
- 5mm
- Min Supply Voltage :
- 12V
- JESD-609 Code :
- e0
- Packaging :
- Bulk
- Output Current :
- 10A
- Terminal Position :
- Zig-Zag
- Power Supplies :
- 15V
- Number of Functions :
- 1
- Radiation Hardening :
- No
- Height :
- 22.3mm
- Max Supply Voltage :
- 20V
- Supply Voltage :
- 15V
- Published :
- 2005
- Datasheets
- IRAMS10UP60A
