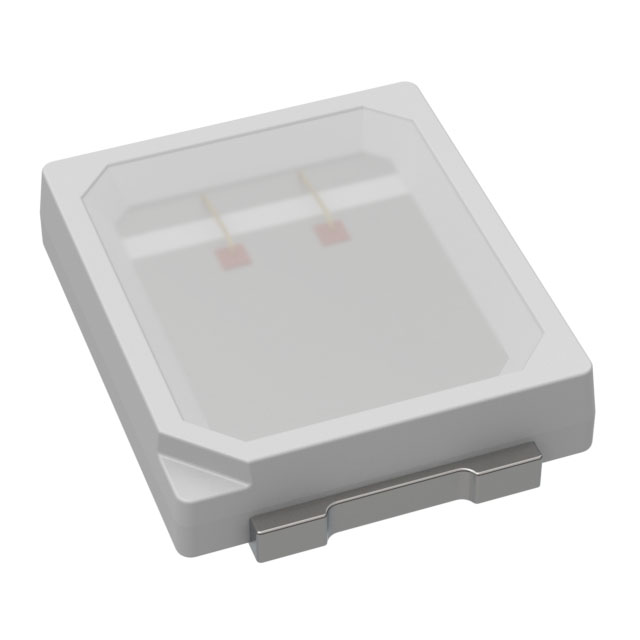

    Images are for reference only.

    Delivery：

    Payment：

    IN-P23CTJR

    Share

    Or copy the link below:

    Mfr.Part #
    IN-P23CTJR
    Manufacturer
    Inolux
    Package / Case
    1411 (3528 Metric)
    Datasheet
    Download
    Description
    TOP VIEW / 2835 / 3.2 X 2.8 X 0.
    Stock
    79
    In Stock ：
    79

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Inolux
    Product Category :
    Mounting Type :
    Surface Mount
    Size / Dimension :
    3.50mm L x 2.80mm W
    Viewing Angle :
    120°
    Product Status :
    Active
    Voltage - Forward (Vf) (Typ) :
    2.1V
    Brand :
    Inolux
    Illumination Color :
    Red
    Height :
    0.7 mm
    Power Rating :
    200 mW
    Series :
    -
    Current - Test :
    60mA
    Maximum Operating Temperature :
    + 80 C
    Vf - Forward Voltage :
    2.1 V
    Lens Dimensions :
    3.2 mm x 2.8 mm
    Package :
    Digi-Reel?
    Lens Transparency :
    Clear
    Millicandela Rating :
    -
    Length :
    3.2 mm
    Configuration :
    Common Cathode
    Package / Case :
    1411 (3528 Metric)
    Lens Size :
    -
    Height (Max) :
    1.00mm
    Color :
    Red
    Lens Style :
    Rectangle with Flat Top
    Product Category :
    Mid-Power LEDs - Single Color
    RoHS :
    Details
    Manufacturer :
    Inolux
    Mounting Style :
    SMD/SMT
    Lens Color :
    Colorless
    Minimum Operating Temperature :
    - 40 C
    Wavelength - Dominant :
    624nm
    Features :
    -
    Wavelength - Peak :
    632nm
    Supplier Device Package :
    1411
    Product :
    Red LEDs
    Subcategory :
    LEDs
    Packaging :
    Reel
    Width :
    2.8 mm
    Luminous Flux/Radiant Flux :
    8 lm
    Product Type :
    LED - Mid Power
    Datasheets
    IN-P23CTJR
    Introducing Inolux IN-P23CTJR from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Surface Mount, Package / Case：1411 (3528 Metric), IN-P23CTJR pinout, IN-P23CTJR datasheet PDF, IN-P23CTJR amp .Beyond Inolux IN-P23CTJR ,we also offer F9TYP5E5EANF097, F9TYP5E5EANF098, F9TYP5E5EANF099, Our vast inventory has you covered. Contact us now for immediate solutions.

    Inolux IN-P23CTJR


    IN-P23CTJR datasheet pdf and LED Indication - Discrete product details from Inolux stock available at
