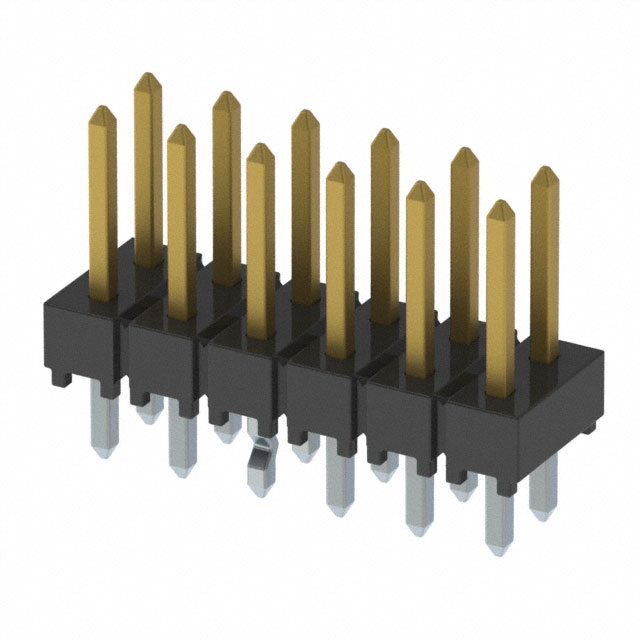

HTSW-106-07-S-D-LL

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Termination :

Kinked Pin, Solder

Max Voltage Rating (AC) :

550V

MIL Conformance :

No

Number of Rows :

2

DIN Conformance :

No

IEC Conformance :

No

Contact Finish - Mating :

Gold

Number of Conductors :

ONE

Number of Positions Loaded :

All

Style :

Board to Board or Cable

Published :

2011

PCB Contact Pattern :

RECTANGULAR

Connector Type :

Header

Length :

15.24mm

Contact Material :

Phosphor Bronze

Body Breadth :

0.198 inch

Moisture Sensitivity Level (MSL) :

Not Applicable

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Housing Material :

Polymer

Insulation Color :

Natural

Mounting Type :

Through Hole

Fastening Type :

Push-Pull

RoHS Status :

ROHS3 Compliant

Row Spacing - Mating :

0.100 (2.54mm)

Operating Temperature :

-55°C~125°C

Gender :

Male

Option :

GENERAL PURPOSE

Depth :

5.02mm

JESD-609 Code :

e3

Filter Feature :

No

Contact Length - Mating :

0.230 5.84mm

Insulation Material :

Liquid Crystal Polymer (LCP)

Contact Shape :

Square

Mixed Contacts :

No

Overall Contact Length :

0.430 10.92mm

Insulation Height :

0.100 2.54mm

Additional Feature :

E.L.P.

Material Flammability Rating :

UL94 V-0

Number Of PCB Rows :

2

Max Current Rating :

7.6A

Mating Contact Pitch :

0.1 inch

Packaging :

Bulk

Number of Positions :

12

Contact Finish - Post :

Tin

Series :

HTSW

Contact Type :

Male Pin

Contact Length - Post :

0.100 2.54mm

Factory Lead Time :

3 Weeks

Orientation :

Straight

Current Rating (Amps) :

Varies by WireGAuge

Reliability :

COMMERCIAL

Shrouding :

Unshrouded

Pitch - Mating :

0.100 2.54mm

Radiation Hardening :

No
