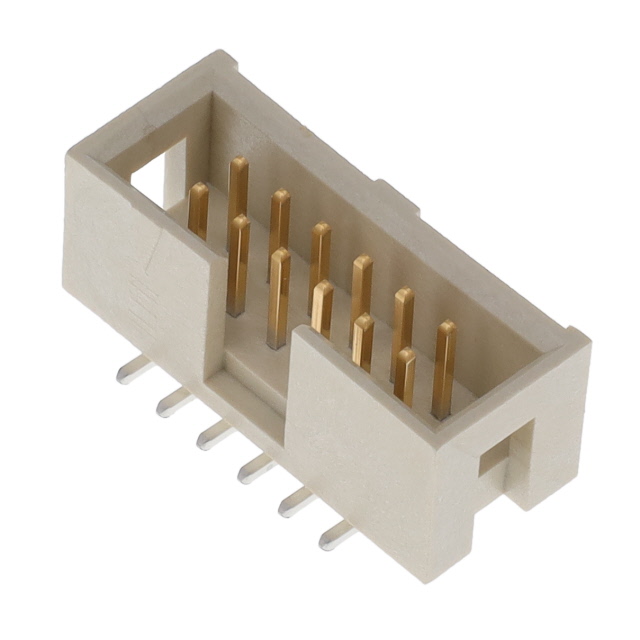

HTST-106-01-L-DV
Or copy the link below:
- Mfr.Part #
- HTST-106-01-L-DV
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 12POS 2.54MM
- Stock
- 12
- In Stock ：
- 12
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Orientation :
- Straight
- Contact Shape :
- Square
- Filter Feature :
- No
- UL Flammability Code :
- 94V-0
- Contact Length - Mating :
- 0.250 6.35mm
- Series :
- Flex Stack, HTST
- Mounting Type :
- Surface Mount
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Radiation Hardening :
- No
- JESD-609 Code :
- e3
- Contact Finish - Post :
- Tin
- Factory Lead Time :
- 3 Weeks
- Housing Material :
- Polymer
- Total Number of Contacts :
- 12
- Option :
- GENERAL PURPOSE
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Insulation Height :
- 0.350 8.89mm
- Packaging :
- Bulk
- Published :
- 2011
- Feature :
- Board Guide, Keying Slot
- Contact Material :
- Phosphor Bronze
- Shrouding :
- Shrouded - 4 Wall
- Number of Rows :
- 2
- Gender :
- Male
- ECCN Code :
- EAR99
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Pitch - Mating :
- 0.100 2.54mm
- Fastening Type :
- Push-Pull
- Operating Temperature :
- -55°C~125°C
- Style :
- Board to Cable/Wire
- Connector Type :
- Header
- Current Rating (Amps) :
- 3.4A per Contact
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Number of Positions :
- 12
- DIN Conformance :
- No
- Depth :
- 9.27mm
- Contact Finish - Mating :
- Gold
- Length :
- 20.32mm
- Contact Type :
- Male Pin
- IEC Conformance :
- No
- HTS Code :
- 8536.69.40.40
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Insulation Color :
- Natural
- Datasheets
- HTST-106-01-L-DV
Flex Stack, HTST Series 2-Row Header Solder Phosphor Bronze Bulk Surface Mount Gold Liquid Crystal Polymer (LCP) 12-Position Board to Cable/Wire 0.350 8.89mm Height
HTST-106-01-L-DV-A Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Bulk case is used.It belongs to the Flex Stack, HTST Series of products.Its Board Guide, Keying Slot feature renders it more powerful in many ways.The device runs in -55°C~125°C Operating Temperature.
HTST-106-01-L-DV-A Features
Flex Stack, HTST series
HTST-106-01-L-DV-A Applications
There are a lot of Samtec Inc.
HTST-106-01-L-DV-A Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
