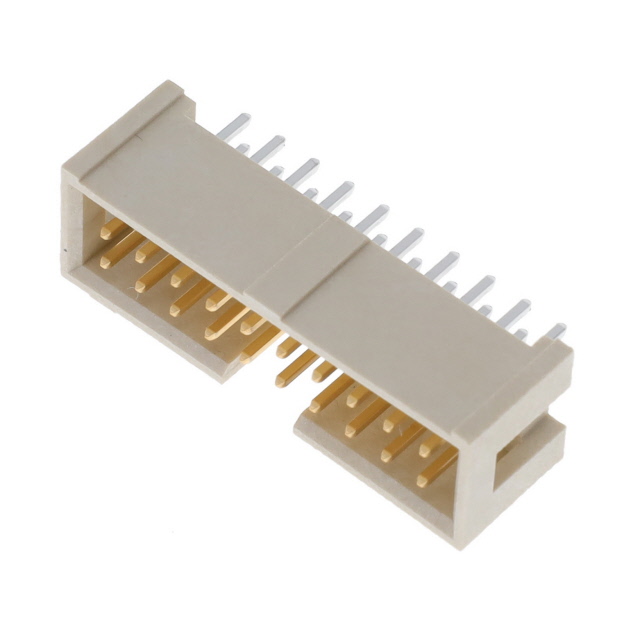

HTSS-110-01-L-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Plating Thickness :

10μin

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Contact Material :

Phosphor Bronze

JESD-609 Code :

e3

Insulation Height :

0.350 8.89mm

Mount :

Through Hole

Mating Contact Pitch :

0.1 inch

Length :

29.21mm

Number of Positions :

20

Contact Length - Mating :

0.250 6.35mm

Termination :

Solder

Material Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Contact Finish Thickness - Mating :

10.0μin 0.25μm

Contact Shape :

Square

Housing Color :

Natural

Depth :

9.27mm

Contact Length - Post :

0.115 2.92mm

Housing Material :

Polychlorinated

Insulation Material :

Liquid Crystal Polymer (LCP)

Max Current Rating :

3A

RoHS Status :

ROHS3 Compliant

Connector Type :

Header

Series :

Flex Stack, HTSS

PCB Contact Pattern :

RECTANGULAR

Number of Positions Loaded :

All

Pitch - Mating :

0.100 2.54mm

Polarization Key :

POLARIZED HOUSING

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tube

MIL Conformance :

No

Operating Temperature :

-55°C~125°C

Feature :

Keying Slot

DIN Conformance :

No

Contact Finish - Post :

Tin

Reference Standard :

UL

Published :

2013

Reliability :

COMMERCIAL

Factory Lead Time :

3 Weeks

Shrouding :

Shrouded - 4 Wall

Filter Feature :

No

Insulation Resistance :

5000000000Ohm

Style :

Board to Board or Cable

Mounting Type :

Through Hole

Contact Type :

Male Pin

IEC Conformance :

No

Number Of PCB Rows :

2

Number of Rows :

2

Dielectric Withstanding Voltage :

1400VAC V

Orientation :

Straight

Rated Current (Signal) :

3A

Gender :

Male

Contact Finish - Mating :

Gold

Fastening Type :

Push-Pull

Body Breadth :

0.365 inch

Row Spacing - Mating :

0.100 (2.54mm)

Number of Conductors :

ONE

Overall Contact Length :

0.480 12.19mm
