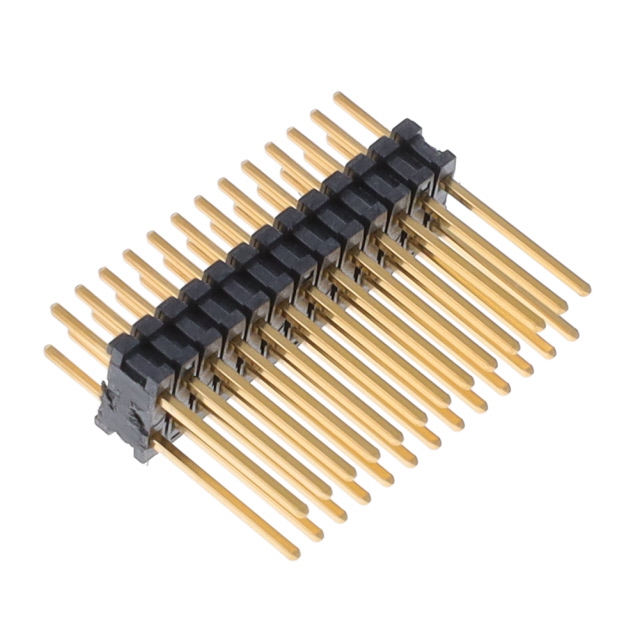

HTMS-113-53-G-D

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Number Of PCB Rows :

2

Filter Feature :

No

IEC Conformance :

No

Pitch :

1.27mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Dielectric Withstanding Voltage :

600VAC V

Rated Current (Signal) :

1A

Contact Material :

Phosphor Bronze

Termination :

Solder

Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Pbfree Code :

yes

Contact Style :

SQ PIN-SKT

DIN Conformance :

No

Body Length or Diameter :

0.65 inch

Factory Lead Time :

2 Weeks

Operating Temperature (Min) :

-65°C

JESD-609 Code :

e4

Operating Temperature (Max) :

105°C

Insulation Material :

Nylon

Insulator Color :

Black

Insulation Resistance :

5000000000Ohm

Mount :

Through Hole

Connector Type :

BOARD CONNECTOR

MIL Conformance :

No

RoHS Status :

ROHS3 Compliant

Contact Plating :

Gold

Number of Rows :

2

Mating Contact Row Spacing :

0.1 inch

PCB Contact Pattern :

RECTANGULAR

Number of Conductors :

ONE

Plating Thickness :

10μin

Body Breadth :

0.196 inch

Body Depth :

0.1 inch

Body/Shell Style :

Receptacle

Gender :

Male

Option :

GENERAL PURPOSE

Number of Contacts :

26
