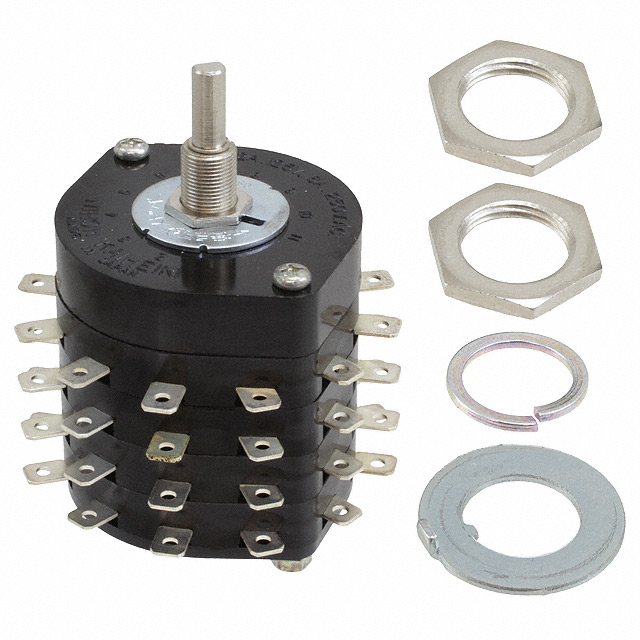

HS16-4SN

Manufacturer :

NKK Switches

Product Category :

Current Rating :

12A

Insulation Resistance :

200000000Ohm

Contact Style :

Shorting

Pbfree Code :

yes

Insulation Material :

Phenolic

Termination Style :

Solder Lug

Number of Poles per Deck :

1

Mount :

Panel

Contact Current(AC)-Max :

6A

Number of Pins :

11

Termination :

Solder

Electrical Life :

7500 Cycle(s)

Number of Positions :

2 ~ 11

Index Angle :

30 °

Index Stops :

Adjustable

Factory Lead Time :

8 Weeks

Voltage - Rated AC :

125V

Contact (AC) Max Rating R Load :

6A@250VAC

Current Rating (Amps) :

12A AC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Voltage(AC)-Max :

250V

Circuit per Deck :

SP11T

RoHS Status :

ROHS3 Compliant

Actuator Type :

Flatted (6mm Dia)

Panel Cutout Dimensions :

Circular - 10.30mm Dia

Operating Force :

70 ~ 81gfm

End Contact Plating :

Silver

Number of Decks :

4

Contact Timing :

Shorting (MBB)

Depth Behind Panel :

61.50mm

Contact Material :

Phosphor Bronze

Switch Type :

ROTARY SWITCH

Solderability :

Hand

Actuator Finish :

Nickel

Operating Temperature (Max) :

70°C

Published :

2011

Mounting Type :

Panel Mount

Orientation :

Vertical

Actuator Length :

15.00mm

Series :

HS
