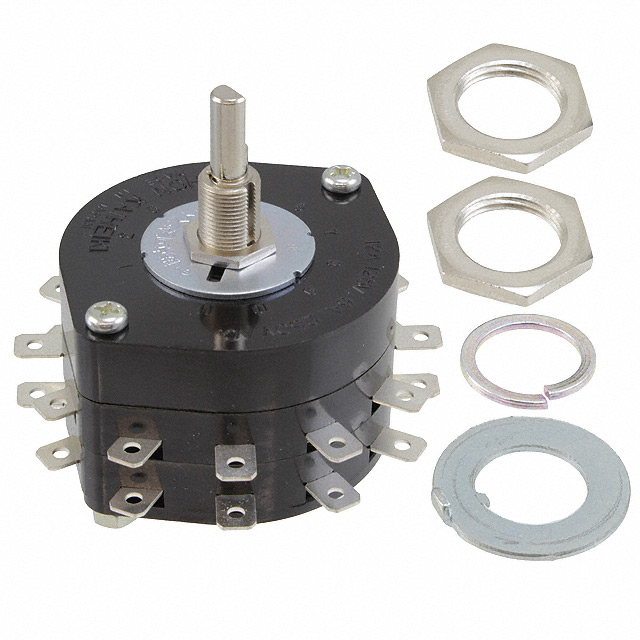

HS16-2SN

Manufacturer :

NKK Switches

Product Category :

Circuit per Deck :

SP11T

Orientation :

Vertical

Voltage - Rated AC :

125V

Series :

HS

Actuator Finish :

Nickel

Panel Cutout Dimensions :

Circular - 10.30mm Dia

Actuator Length :

15.00mm

Actuator Type :

Flatted (6mm Dia)

Current Rating (Amps) :

12A AC

Insulation Material :

Phenolic

Length :

65mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

REACH SVHC :

No SVHC

Index Stops :

Adjustable

Termination Style :

Solder Lug

Depth :

71mm

Max Operating Temperature :

70°C

Number of Positions :

2 ~ 11

Max Current Rating :

12A

Illumination Type :

Illuminated

Depth Behind Panel :

41.50mm

RoHS Status :

ROHS3 Compliant

Mount :

Panel

Termination :

Solder

Number of Pins :

11

Number of Decks :

2

Mounting Type :

Panel Mount

Contact Style :

Shorting

Solderability :

Hand

Max Voltage Rating (AC) :

250V

Actuator Material :

Brass

Number of Poles per Deck :

1

Packaging :

Bulk

Current Rating :

12A

Contact Current(AC)-Max :

6A

Min Operating Temperature :

-10°C

Published :

2011

Factory Lead Time :

8 Weeks

Operating Force :

60 ~ 70gfm

Switch Type :

ROTARY SWITCH

Contact Material :

Phosphor Bronze

End Contact Plating :

Silver

Contact Timing :

Shorting (MBB)

Pbfree Code :

yes

Electrical Life :

7500 Cycle(s)

Index Angle :

30 °

ECCN Code :

EAR99

Throw Configuration :

DP12T, SP11T
