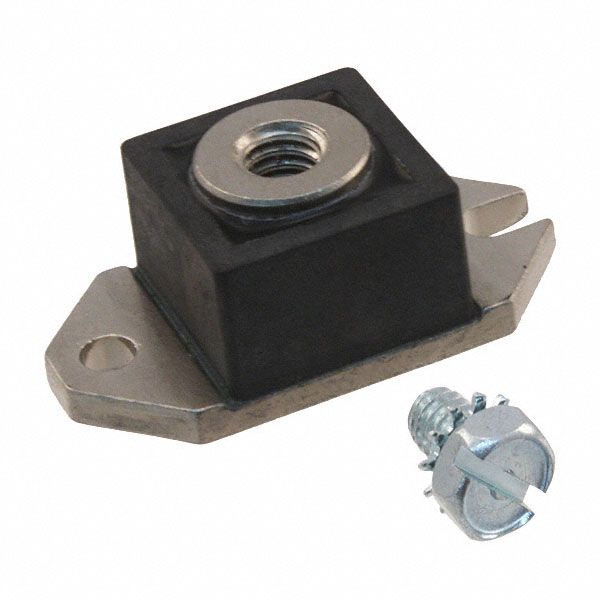

HS123100

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Single

Radiation Hardening :

No

Voltage - Forward (Vf) (Max) @ If :

910mV @ 120A

Forward Current :

120A

Average Rectified Current :

120A

JESD-30 Code :

S-XUFM-X1

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Number of Elements :

1

Pbfree Code :

No

Number of Pins :

2

ECCN Code :

EAR99

Diode Element Material :

SILICON

Peak Reverse Current :

3mA

RoHS Status :

RoHS Compliant

Application :

GENERAL PURPOSE

Max Operating Temperature :

175°C

Mount :

Chassis Mount, Screw

Max Repetitive Reverse Voltage (Vrrm) :

100V

Min Operating Temperature :

-55°C

Terminal Form :

UNSPECIFIED

Current - Reverse Leakage @ Vr :

3mA @ 100V

Published :

1999

Number of Phases :

1

Peak Non-Repetitive Surge Current :

2kA

Forward Voltage :

760mV

Terminal Position :

UPPER

Package / Case :

HALF-PAK

Diode Type :

Schottky

HTS Code :

8541.10.00.80

Packaging :

Bulk

Number of Terminations :

1

Case Connection :

CATHODE

Max Reverse Voltage (DC) :

100V

Capacitance @ Vr, F :

3000pF @ 5V 1MHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Chassis Mount

Element Configuration :

Single
