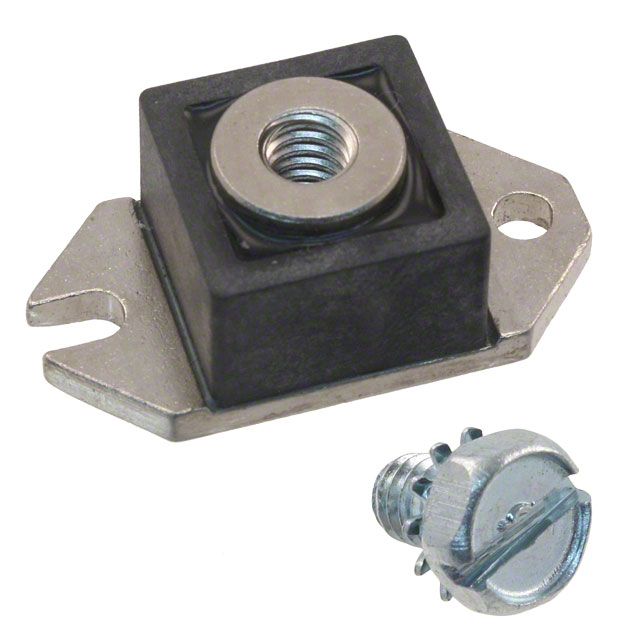

HS12045

Manufacturer :

Microsemi

Product Category :

Diodes - Rectifiers - Single

Mount :

Chassis Mount, Screw

Terminal Form :

UNSPECIFIED

RoHS Status :

RoHS Compliant

Average Rectified Current :

120A

HTS Code :

8541.10.00.80

Number of Terminations :

1

JESD-30 Code :

R-XUFM-X1

Capacitance @ Vr, F :

5500pF @ 5V 1MHz

Package / Case :

HALF-PAK

Number of Phases :

1

Max Reverse Voltage (DC) :

45V

Packaging :

Bulk

Terminal Position :

UPPER

Max Operating Temperature :

150°C

Forward Voltage :

550mV

Pbfree Code :

No

Number of Elements :

1

Diode Type :

Schottky

Voltage - Forward (Vf) (Max) @ If :

550mV @ 120A

Current - Reverse Leakage @ Vr :

5mA @ 45V

Max Repetitive Reverse Voltage (Vrrm) :

45V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Min Operating Temperature :

-55°C

Application :

GENERAL PURPOSE

Element Configuration :

Single

Peak Non-Repetitive Surge Current :

2kA

Published :

1999

ECCN Code :

EAR99

Diode Element Material :

SILICON

Lead Free :

Lead Free

Number of Pins :

2

Case Connection :

CATHODE

Mounting Type :

Chassis Mount

Peak Reverse Current :

5mA

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Radiation Hardening :

No

Forward Current :

120A
