HIF6H-100PA-1.27DS(71)
Or copy the link below:
- Mfr.Part #
- HIF6H-100PA-1.27DS(71)
- Manufacturer
- Hirose
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 100P 1.27MM
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Hirose
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Gold
- Mounting Type :
- Through Hole, Right Angle
- Connector Type :
- Header
- Current Rating (Amps) :
- 0.5A
- Pitch - Mating :
- 0.050 1.27mm
- Style :
- Board to Cable/Wire
- Current Rating :
- 500mA
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Type :
- Male Pin
- Number of Pins :
- 100
- Contact Shape :
- Square
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Series :
- HIF6
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Voltage - Rated :
- 300V
- Feature :
- Keying Slot, Mounting Flange
- RoHS Status :
- RoHS Compliant
- Operating Temperature :
- -55°C~85°C
- Fastening Type :
- Latch Lock/Eject Hooks
- Insulation Color :
- Black
- Pitch :
- 1.27mm
- Shrouding :
- Shrouded - 4 Wall
- Factory Lead Time :
- 10 Weeks
- Packaging :
- Tray
- Number of Positions :
- 100
- Termination :
- Solder
- Contact Length - Mating :
- 0.205 5.21mm
- Contact Material :
- Brass
- Insulation Height :
- 0.335 8.51mm
- Contact Finish Thickness - Mating :
- 8.00μin 0.203μm
- Datasheets
- HIF6H-100PA-1.27DS(71)
.jpg)

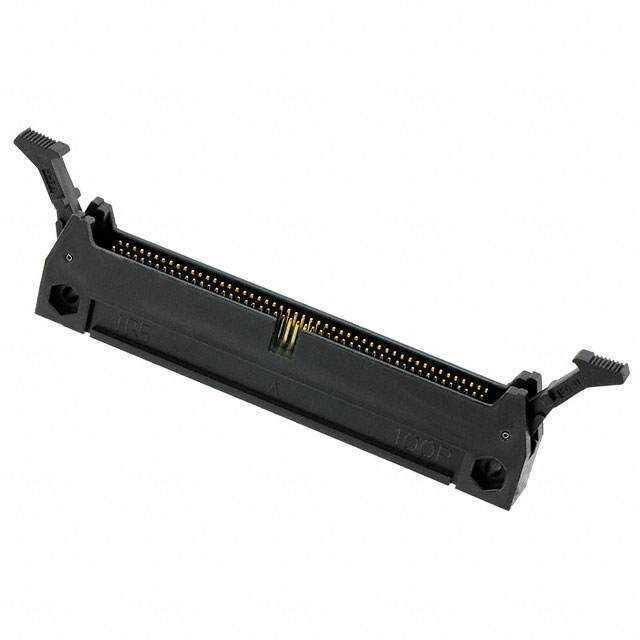

HIF6 Series 2-Row Header Solder Brass Tray Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 100-Position Board to Cable/Wire 0.335 8.51mm Height
HIF6H-100PA-1.27DS(71) Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the HIF6 Series.100 pins are present on the device.It is more powerful in many ways due to its Keying Slot, Mounting Flange feature.It operates at an operating temperature of -55°C~85°C.
HIF6H-100PA-1.27DS(71) Features
HIF6 series
HIF6H-100PA-1.27DS(71) Applications
There are a lot of Hirose Electric Co Ltd
HIF6H-100PA-1.27DS(71) Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
