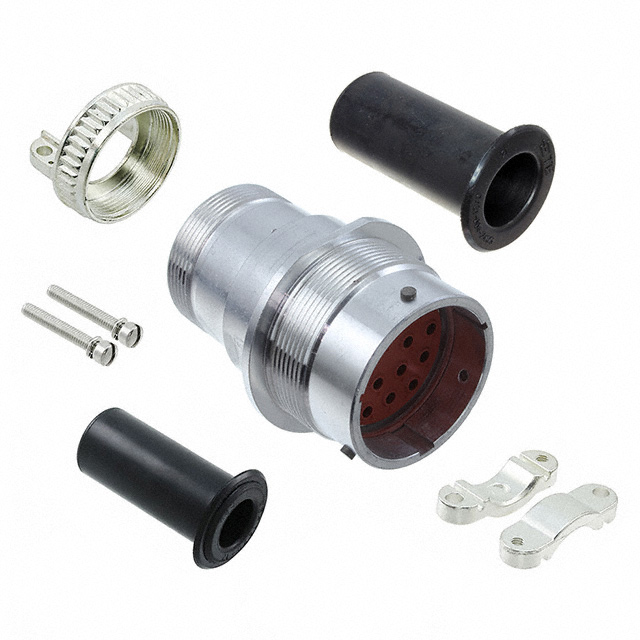

HD34-24-16PN-059
Or copy the link below:
- Mfr.Part #
- HD34-24-16PN-059
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG MALE 16POS PNL MNT
- Stock
- 76
- In Stock ：
- 76
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Operating Temperature :
- -55°C~125°C
- Housing Color :
- Silver
- Factory Lead Time :
- 10 Weeks
- Series :
- HD30
- Shell Size - Insert :
- 24-16
- Color :
- Green
- Packaging :
- Bulk
- Orientation :
- Keyed
- Hybrid Connector :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Feature :
- Backshell, Cable Clamp
- Published :
- 2002
- RoHS Status :
- RoHS Compliant
- Type :
- For Male Pins
- Fastening Type :
- Bayonet Lock
- Contact Type :
- Crimp
- Contact Size :
- 12
- Mounting Type :
- Panel Mount
- Shell Material :
- Aluminum
- Mounting Feature :
- Bulkhead - Front Side Nut
- Connector Type :
- Receptacle Housing
- Contact Shape :
- Circular
- Number of Positions :
- 16
- Insert Material :
- Polyetherimide (PEI)
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Shielding :
- Unshielded
- Note :
- Contacts Not Included; Jam Nut Not Included
- Datasheets
- HD34-24-16PN-059
Receptacle Housing Aluminum Panel Mount 16 Positions Bulk Bayonet Lock Unshielded Contacts Not Included; Jam Nut Not Included HD30
HD34-24-16PN-059 Overview
It comes in a Receptacle Housing package.Panel Mount is the mounting type of the device.We pack the product in a Bulk case.This is from the HD30 Series.The part shares a lot of benefits with other For Male Pins products.If Backshell, Cable Clamp is maintained, it will operate.
HD34-24-16PN-059 Features
HD30 series
HD34-24-16PN-059 Applications
There are a lot of TE Connectivity Deutsch Connectors
HD34-24-16PN-059 Circular Connectors applications.
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
