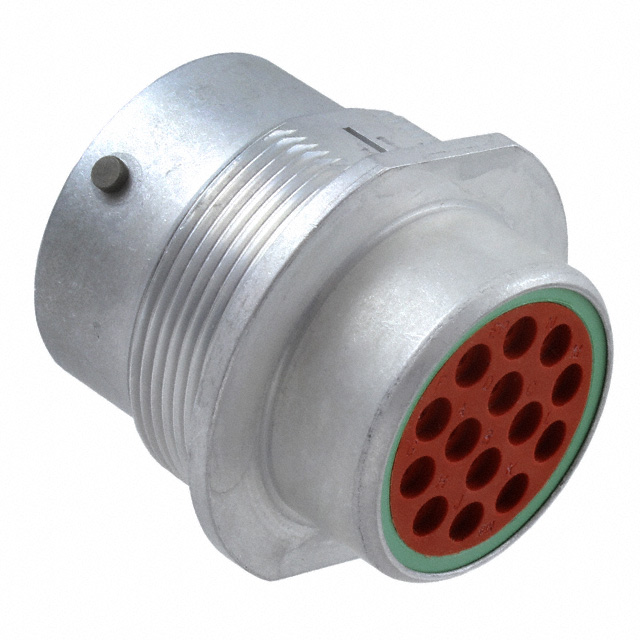

HD34-18-14PE
Or copy the link below:
- Mfr.Part #
- HD34-18-14PE
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 14POS PNL MT
- Stock
- 965
- In Stock ：
- 965
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Series :
- HD30
- Additional Feature :
- POLARIZED
- Shielding :
- Unshielded
- Hybrid Connector :
- No
- Operating Temperature :
- -55°C~125°C
- Type :
- For Male Pins
- Contact Size :
- 16
- Factory Lead Time :
- 10 Weeks
- Orientation :
- Keyed
- Housing Color :
- Silver
- Empty Shell :
- No
- MIL Conformance :
- No
- DIN Conformance :
- No
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- Mounting Feature :
- Bulkhead - Front Side Nut
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Polarized :
- yes
- Published :
- 2002
- Length :
- 44.45mm
- Total Number of Contacts :
- 14
- Color :
- Natural, Blue
- Housing Material :
- Aluminium
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- ELV :
- Compliant
- Shell Material :
- Aluminum
- Contact Shape :
- Circular
- Note :
- Contacts Not Included; Jam Nut Not Included
- Fastening Type :
- Bayonet Lock
- Insert Material :
- Polyetherimide (PEI)
- Shell Size - Insert :
- 18-14
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Number of Positions :
- 14
- Contact Type :
- Crimp
- Width :
- 36.49mm
- Connector Type :
- Receptacle Housing
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Mounting Type :
- Panel Mount
- Filter Feature :
- No
- Height :
- 41.8338mm
- Datasheets
- HD34-18-14PE
HD34-18-14PE Documents
Receptacle Housing Aluminum Panel Mount 14 Positions Bulk Bayonet Lock Unshielded Contacts Not Included; Jam Nut Not Included HD30
HD34-18-14PE Overview
The product is packaged in Receptacle Housing.This device is mounted in the Panel Mount position.It has been determined that a Bulk case is necessary to package the product.There is a product in the HD30 Series.Many of the benefits of this part can be attributed to other products from the [0] family.To name a few, there is also POLARIZED.
HD34-18-14PE Features
HD30 series
HD34-18-14PE Applications
There are a lot of TE Connectivity Deutsch Connectors
HD34-18-14PE Circular Connectors applications.
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
