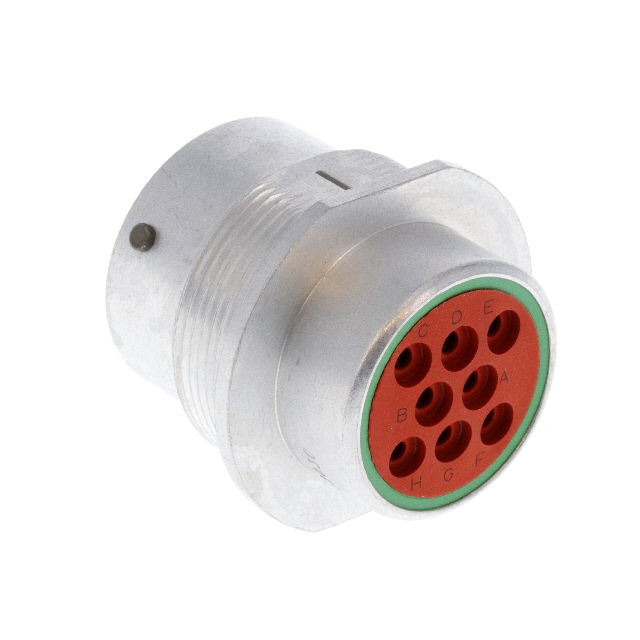

HD34-18-8SN
Or copy the link below:
- Mfr.Part #
- HD34-18-8SN
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG FMALE 8POS PNL MT
- Stock
- 124
- In Stock ：
- 124
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Note :
- Contacts Not Included; Jam Nut Not Included
- Width :
- 36.49mm
- Mounting Feature :
- Bulkhead - Front Side Nut
- Shielding :
- Unshielded
- Operating Temperature :
- -55°C~125°C
- Insert Material :
- Polyetherimide (PEI)
- Factory Lead Time :
- 10 Weeks
- Shell Size - Insert :
- 18-8
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Contact Size :
- 12
- Number of Positions :
- 8
- Contact Shape :
- Circular
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Aluminium
- Mounting Type :
- Panel Mount
- Polarized :
- yes
- ELV :
- Compliant
- Color :
- Natural, Green
- Housing Color :
- Silver
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Contact Type :
- Crimp
- Shell Material :
- Aluminum
- Packaging :
- Bulk
- Height :
- 41.8338mm
- Connector Type :
- Receptacle Housing
- Hybrid Connector :
- No
- Length :
- 44.45mm
- Published :
- 2002
- Orientation :
- Keyed
- Fastening Type :
- Bayonet Lock
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Series :
- HD30
- Type :
- For Female Sockets
- Datasheets
- HD34-18-8SN
HD34-18-8SN Documents
Receptacle Housing Aluminum Panel Mount 8 Positions Bulk Bayonet Lock Unshielded Contacts Not Included; Jam Nut Not Included HD30
HD34-18-8SN Overview
Packaging is in the form of Receptacle Housing.This device has a Panel Mount mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the HD30 Series.Many of the features of this part can also be found in other For Female Sockets products.
HD34-18-8SN Features
HD30 series
HD34-18-8SN Applications
There are a lot of TE Connectivity Deutsch Connectors
HD34-18-8SN Circular Connectors applications.
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
- Data Acquisition Systems
