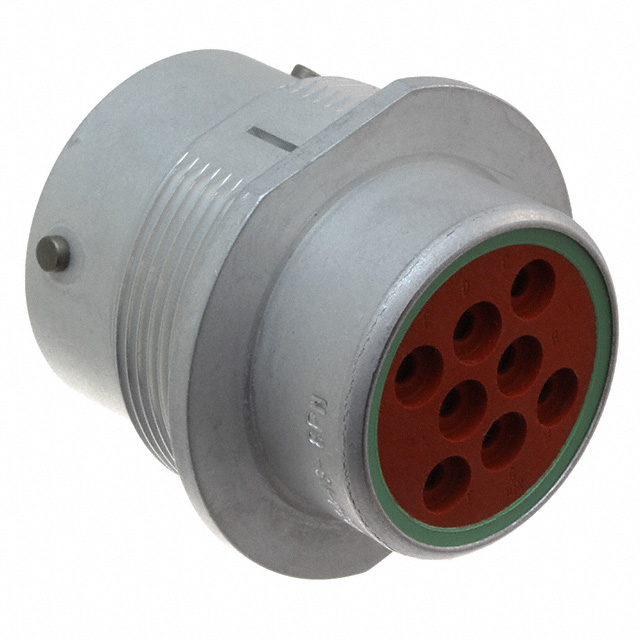

HD34-18-8PN
Or copy the link below:
- Mfr.Part #
- HD34-18-8PN
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 8POS PNL MNT
- Stock
- 398
- In Stock ：
- 398
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Operating Temperature :
- -55°C~125°C
- Mounting Type :
- Panel Mount
- Housing Material :
- Aluminium
- Contact Type :
- Crimp
- Type :
- For Male Pins
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 10 Weeks
- Housing Color :
- Silver
- Insert Material :
- Polyetherimide (PEI)
- Height :
- 41.8338mm
- Contact Shape :
- Circular
- Fastening Type :
- Bayonet Lock
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Connector Type :
- Receptacle Housing
- Mounting Feature :
- Bulkhead - Front Side Nut
- Orientation :
- Keyed
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Shell Material :
- Aluminum
- Width :
- 36.49mm
- Series :
- HD30
- Polarized :
- yes
- Color :
- Natural, Green
- Shielding :
- Unshielded
- Note :
- Contacts Not Included; Jam Nut Not Included
- Number of Positions :
- 8
- Length :
- 44.45mm
- ELV :
- Compliant
- Shell Size - Insert :
- 18-8
- Contact Size :
- 12
- Published :
- 2002
- Hybrid Connector :
- No
- Datasheets
- HD34-18-8PN
Receptacle Housing Aluminum Panel Mount 8 Positions Bulk Bayonet Lock Unshielded Contacts Not Included; Jam Nut Not Included HD30
HD34-18-8PN Overview
Packaging is Receptacle Housing.Panel Mount is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the HD30 Series, it can be found in this category.In addition to its many benefits, this part is also compatible with other products of [0].
HD34-18-8PN Features
HD30 series
HD34-18-8PN Applications
There are a lot of TE Connectivity Deutsch Connectors
HD34-18-8PN Circular Connectors applications.
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
