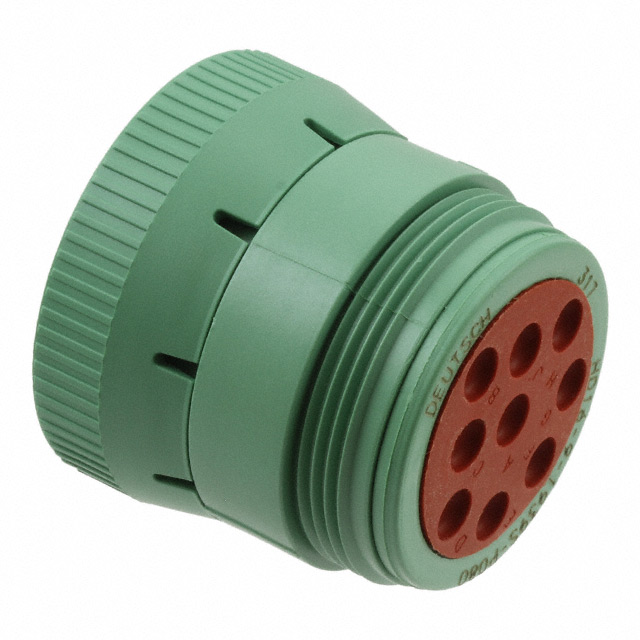

HD16-9-1939S-P080
Or copy the link below:
- Mfr.Part #
- HD16-9-1939S-P080
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSNG FMALE 9POS INLINE
- Stock
- 509
- In Stock ：
- 509
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Operating Temperature :
- -40°C~125°C
- Orientation :
- Keyed
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Material Flammability Rating :
- UL94 V-1
- Note :
- Contacts Not Included
- Factory Lead Time :
- 10 Weeks
- Published :
- 2015
- Shielding :
- Unshielded
- Contact Shape :
- Circular
- Series :
- HD10
- Contact Type :
- Crimp
- Number of Positions :
- 9
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Insert Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Fastening Type :
- Bayonet Lock
- Mounting Type :
- Free Hanging (In-Line)
- Packaging :
- Bulk
- Feature :
- Coupling Nut
- Housing Color :
- Green
- Type :
- For Female Sockets
- Connector Type :
- Plug Housing
- RoHS Status :
- RoHS Compliant
- Contact Size :
- 16
- Shell Size - Insert :
- 9-39
- Shell Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Hybrid Connector :
- No
- Datasheets
- HD16-9-1939S-P080
Plug Housing Polyamide (PA66), Nylon 6/6, Glass Filled Free Hanging (In-Line) 9 Positions Bulk Bayonet Lock Unshielded Contacts Not Included HD10
HD16-9-1939S-P080 Description
HD16-9-1939S-P080 is a kind of Automotive Connector. Electrical connectors used in the automotive industry have to be tough and reliable. They are often placed in parts of a vehicle that are open to the elements, meaning they must provide protection against dust ingress and moisture. They may also have a good degree of heat resistance. Due to the movement and vibrations within a vehicle, the connectors will often have secure locking systems built into the plug and socket to prevent unwanted disconnect.
HD16-9-1939S-P080 Features
Connector & Housing Type: Housing for Female Terminals
Mating Pin Diameter: 1.59 mm [ .063 in ]
Connector System: Wire-to-Wire
Number of Positions: 9
Sealable: Yes
Connector Shape: Circular
HD16-9-1939S-P080 Applications
Motorcycles
Cars
Caravans
Motocross
Boating industries
