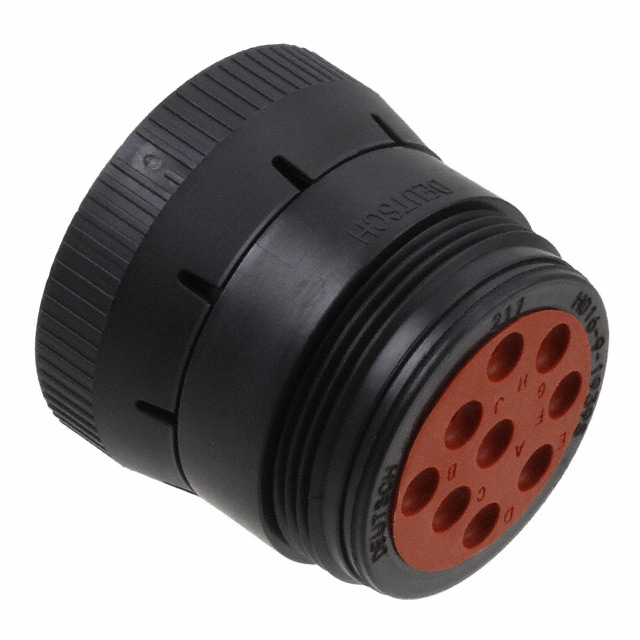

HD16-9-1939S
Or copy the link below:
- Mfr.Part #
- HD16-9-1939S
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG HSG FMALE 9POS INLINE
- Stock
- 939
- In Stock ：
- 939
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Length :
- 40.36mm
- Factory Lead Time :
- 10 Weeks
- Mounting Type :
- Free Hanging (In-Line)
- Height :
- 41.46mm
- Hybrid Connector :
- No
- Material Flammability Rating :
- UL94 V-1
- Packaging :
- Bulk
- Number of Positions :
- 9
- ELV :
- Compliant
- Contact Size :
- 16
- Shell Size - Insert :
- 9-39
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Orientation :
- Keyed
- Series :
- HD10
- Contact Shape :
- Circular
- RoHS Status :
- RoHS Compliant
- Note :
- Contacts Not Included
- Connector Type :
- Plug Housing
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Shell Material :
- Polyamide (PA), Nylon, Glass Filled
- Insert Material :
- Polyamide (PA), Nylon, Glass Filled
- Published :
- 2016
- Contact Type :
- Crimp
- Operating Temperature :
- -40°C~125°C
- Width :
- 40.386mm
- Housing Material :
- Thermoplastic
- Fastening Type :
- Bayonet Lock
- Feature :
- Coupling Nut
- Housing Color :
- Black
- Shielding :
- Unshielded
- Flammability Rating :
- UL94 V-1
- Polarized :
- yes
- Type :
- For Female Sockets
- Datasheets
- HD16-9-1939S
Plug Housing Polyamide (PA), Nylon, Glass Filled Free Hanging (In-Line) 9 Positions Bulk Bayonet Lock Unshielded Contacts Not Included HD10
HD16-9-1939S Overview
A Plug Housing packaging is included.It's mounted Free Hanging (In-Line).We use a Bulk case to package the product.It's from the HD10 Series.There are a lot of benefits to this part that are shared with other For Female Sockets products.Operationally, Coupling Nut can be maintained.
HD16-9-1939S Features
HD10 series
HD16-9-1939S Applications
There are a lot of TE Connectivity Deutsch Connectors
HD16-9-1939S Circular Connectors applications.
