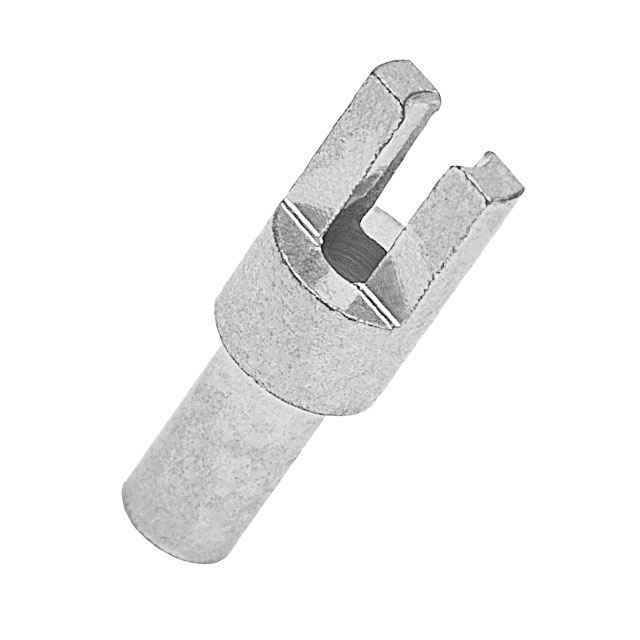

H9037-01

Manufacturer :

Harwin

Product Category :

Turret Connectors

Mounting Type :

Through Hole

RoHS Status :

ROHS3 Compliant

Radiation Hardening :

No

Mounting Hole Diameter :

0.064 ~ 0.068 (1.63mm ~ 1.72mm)

Length :

7.1374mm

ECCN Code :

EAR99

Terminal and Terminal Block Type :

PCB TERMINAL

Termination :

Swage

Contact Material :

Brass Alloy

Terminal Type :

Single End, Fork, Hollow

Mount :

Through Hole

Factory Lead Time :

7 Weeks

Pbfree Code :

yes

Board Thickness :

0.094 2.39mm

Insulation :

Non-Insulated

Gender :

Male

Length - Above Board :

0.156 3.96mm

Body Material :

Brass

HTS Code :

8536.90.40.00

Flange Diameter :

0.094 (2.39mm)

Published :

2006

Number of Turrets :

Single

Staking Side OD :

0.061 ~ 0.064 (1.55mm ~ 1.63mm)

Depth :

2.38mm

Length - Overall :

0.281 7.14mm

Contact Plating :

Tin

Hole Diameter :

1.7272 mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length - Below Flange :

0.094 ~ 0.099 2.39mm ~ 2.51mm
