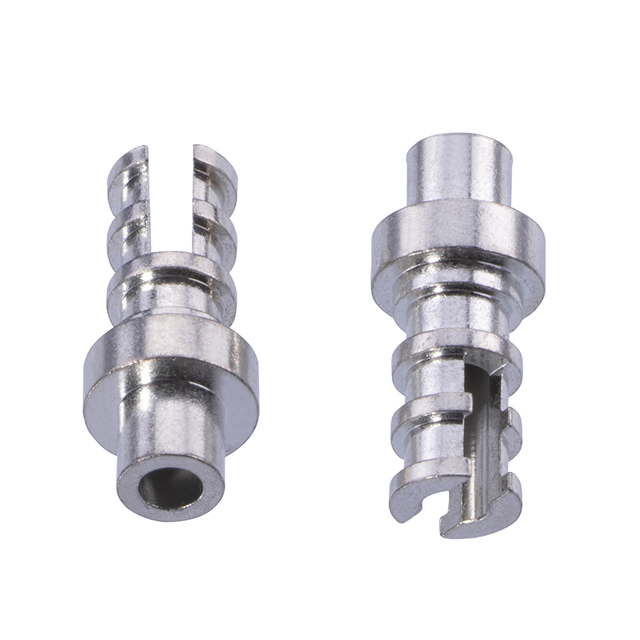

H9030-01

Manufacturer :

Harwin

Product Category :

Turret Connectors

Insulation :

Non-Insulated

Staking Side OD :

0.107 ~ 0.117 (2.73mm ~ 2.98mm)

Factory Lead Time :

13 Weeks

Pbfree Code :

yes

Board Thickness :

0.063 1.60mm

Contact Finish :

Tin

Length - Overall :

0.418 10.62mm

Length :

10.6172mm

Mount :

Through Hole

Mounting Hole Diameter :

0.115 ~ 0.119 (2.93mm ~ 3.01mm)

Hole Diameter :

3.0226 mm

Outside Diameter :

4.76 mm

ECCN Code :

EAR99

Flange Diameter :

0.187 (4.75mm)

Diameter - Turret Head :

0.135 ~ 0.145 (3.43mm ~ 3.68mm)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.90.40.00

Length - Above Board :

0.318 ~ 0.338 8.08mm ~ 8.58mm

RoHS Status :

ROHS3 Compliant

Wire Cross Section :

372.24 mm2

Length - Below Flange :

0.100 ~ 0.110 2.54mm ~ 2.79mm

Number of Turrets :

Triple

Mounting Type :

Through Hole

Material :

Brass

Diameter - Inside :

1.65 mm

Termination :

Swage

Contact Material :

Brass Alloy

Staking Side ID :

0.065 ~ 0.075 (1.65mm ~ 1.91mm)

Published :

2003

Terminal and Terminal Block Type :

WIRE TERMINAL

Terminal Type :

Single End, Hollow
