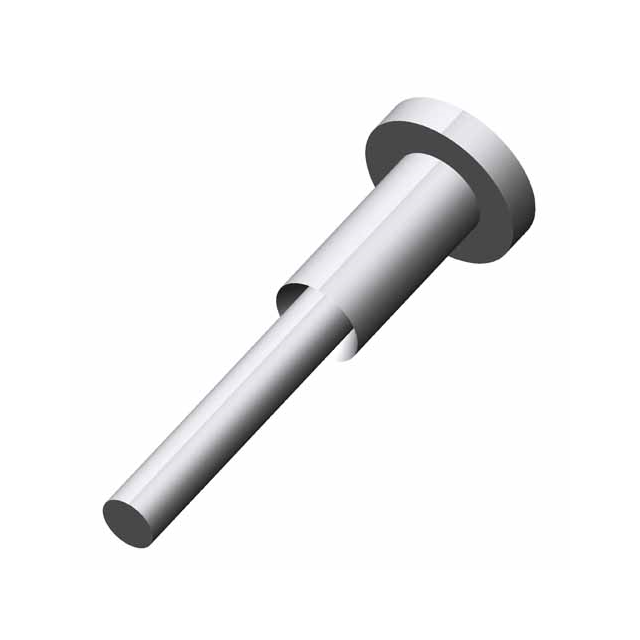

H2106B01
Or copy the link below:
- Mfr.Part #
- H2106B01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- TERMINAL PIN
- Stock
- 49,564
- In Stock ：
- 49,564
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- HTS Code :
- 8536.90.40.00
- Length - Below Flange :
- 0.285 7.24mm
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Contact Material :
- Brass
- Gender :
- Male
- Pin Size - Below Flange :
- 0.032 0.81mm Dia
- Packaging :
- Bulk
- Mount :
- Through Hole
- Mounting Type :
- Through Hole
- Contact Plating :
- Lead, Tin
- Mounting Hole Diameter :
- 0.052 ~ 0.056 (1.32mm ~ 1.42mm)
- Contact Finish :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Board Thickness :
- 0.094 2.39mm
- Insulation :
- Non-Insulated
- RoHS Status :
- ROHS3 Compliant
- Terminal Style :
- Single End
- Termination :
- Solder
- Length - Overall :
- 0.305 7.75mm
- Flange Diameter :
- 0.094 (2.39mm)
- Terminal Type :
- PC Pin
- Factory Lead Time :
- 11 Weeks
- Pbfree Code :
- yes
- ECCN Code :
- EAR99
- Radiation Hardening :
- No
- Wire Cross Section :
- 34.248 mm2
- Connector Type :
- Connector, PCB, Signal
- Datasheets
- H2106B01
