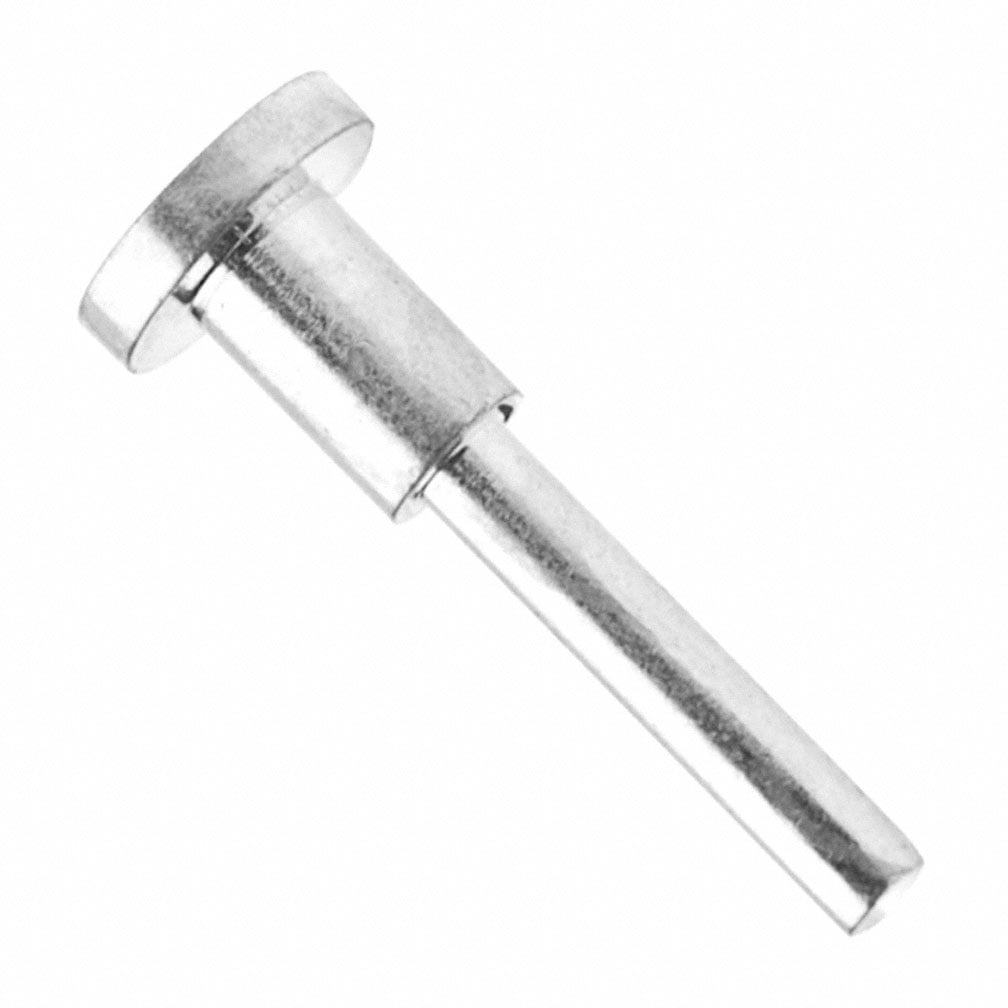

H2105B01
Or copy the link below:
- Mfr.Part #
- H2105B01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC 0.032DIA TIN
- Stock
- 2,391
- In Stock ：
- 2,391
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Diameter - Inside :
- 1.32 mm
- Radiation Hardening :
- No
- ECCN Code :
- EAR99
- REACH SVHC :
- No SVHC
- Published :
- 2009
- Depth :
- 2.4mm
- Contact Plating :
- Tin
- Terminal Style :
- Single End
- Hole Diameter :
- 1.41 mm
- Packaging :
- Bulk
- Factory Lead Time :
- 9 Weeks
- Mount :
- Through Hole
- Connector Type :
- Turret
- Outside Diameter :
- 2.39 mm
- Wire Cross Section :
- 32.871 mm2
- Length - Below Flange :
- 0.253 6.43mm
- RoHS Status :
- ROHS3 Compliant
- Length - Overall :
- 0.273 6.93mm
- Board Thickness :
- 0.063 1.60mm
- Flange Diameter :
- 0.094 (2.39mm)
- Length :
- 6.9342mm
- Termination :
- Swage
- Pin Size - Below Flange :
- 0.032 0.81mm Dia
- Pbfree Code :
- yes
- Insulation :
- Non-Insulated
- HTS Code :
- 8536.69
- Mounting Hole Diameter :
- 0.052 ~ 0.056 (1.32mm ~ 1.42mm)
- Lead Length :
- 4.7mm
- Terminal Type :
- PC Pin
- Mounting Type :
- Through Hole
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Datasheets
- H2105B01
