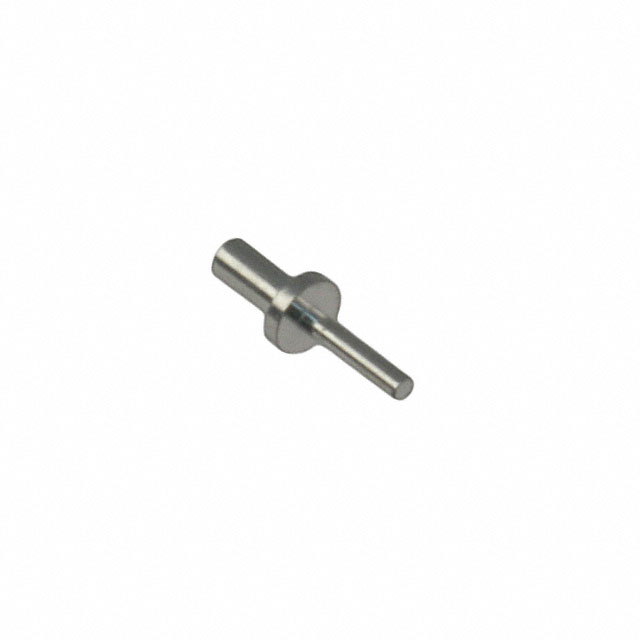

H2106A01
Or copy the link below:
- Mfr.Part #
- H2106A01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC 0.032DIA TIN
- Stock
- 419
- In Stock ：
- 419
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- Contact Plating :
- Tin
- Lead Length :
- 4.5mm
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Diameter - Inside :
- 1.32 mm
- Contact Material :
- Brass
- Connector Type :
- Turret
- Length - Below Flange :
- 0.115 2.92mm
- Pbfree Code :
- yes
- Pin Size - Above Flange :
- 0.032 0.81mm Dia
- Terminal Style :
- Single End
- Mounting Hole Diameter :
- 0.052 ~ 0.056 (1.32mm ~ 1.42mm)
- Terminal Type :
- PC Pin
- Length :
- 7.3914mm
- Termination :
- Swage
- Outside Diameter :
- 2.39 mm
- Depth :
- 2.4mm
- Flange Diameter :
- 0.094 (2.39mm)
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- HTS Code :
- 8536.90.40.00
- Hole Diameter :
- 1.41 mm
- Board Thickness :
- 0.094 2.39mm
- REACH SVHC :
- No SVHC
- Factory Lead Time :
- 9 Weeks
- Mount :
- Through Hole
- Insulation :
- Non-Insulated
- Length - Overall :
- 0.291 7.39mm
- Gender :
- FEMALE
- Radiation Hardening :
- No
- Packaging :
- Bulk
- Length - Above Flange :
- 0.156 3.96mm
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2007
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- H2106A01
H2106A01 Documents
H2106A01 datasheet pdf and Terminals - PC Pin, Single Post Connectors product details from Harwin Inc. stock available at Xinshop
