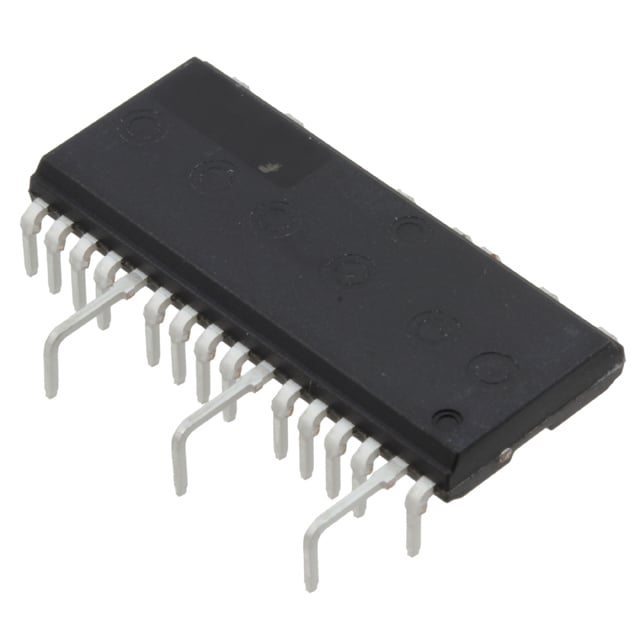

FSB50250AT
- Mfr.Part #
- FSB50250AT
- Manufacturer
- onsemi
- Package / Case
- 23-PowerDIP Module (0.551, 14.00mm)
- Datasheet
- Download
- Description
- MODULE SPM 500V 1.2A 23PWRDIP
- Stock
- 180
- In Stock :
- 180
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- onsemi
- Product Category :
- Power Driver Modules
- Max Supply Voltage :
- 400V
- Collector Emitter Voltage (VCEO) :
- 500V
- Width :
- 12.2mm
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- JESD-609 Code :
- e3
- Number of Functions :
- 1
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- Motion SPM® 5
- Number of Outputs :
- 3
- Operating Supply Voltage :
- 300V
- Terminal Finish :
- Tin (Sn)
- Mount :
- Through Hole
- Qualification Status :
- Not Qualified
- HTS Code :
- 8541.29.00.95
- Package / Case :
- 23-PowerDIP Module (0.551, 14.00mm)
- Max Power Dissipation :
- 13.4W
- RoHS Status :
- ROHS3 Compliant
- Operating Supply Current :
- 200μA
- Reach Compliance Code :
- not_compliant
- Max Operating Temperature :
- 150°C
- Type :
- MOSFET
- ECCN Code :
- EAR99
- Power Supplies :
- 15V
- Max Collector Current :
- 1.2A
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Height :
- 3.3mm
- Min Operating Temperature :
- -40°C
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Configuration :
- 3 Phase
- Supply Current-Max (Isup) :
- 0.2mA
- Base Part Number :
- FSB50250
- Terminal Position :
- Dual
- Max Current Rating :
- 1.2A
- Switching Frequency :
- 15kHz
- Voltage - Isolation :
- 1500Vrms
- Pbfree Code :
- yes
- Supply Voltage :
- 15V
- Length :
- 29.2mm
- Published :
- 2014
- Mounting Type :
- Through Hole
- Number of Terminations :
- 23
- Number of Pins :
- 23
- Min Breakdown Voltage :
- 500V
- Factory Lead Time :
- 8 Weeks
- Weight :
- 5.99g
- Datasheets
- FSB50250AT
